Introduction

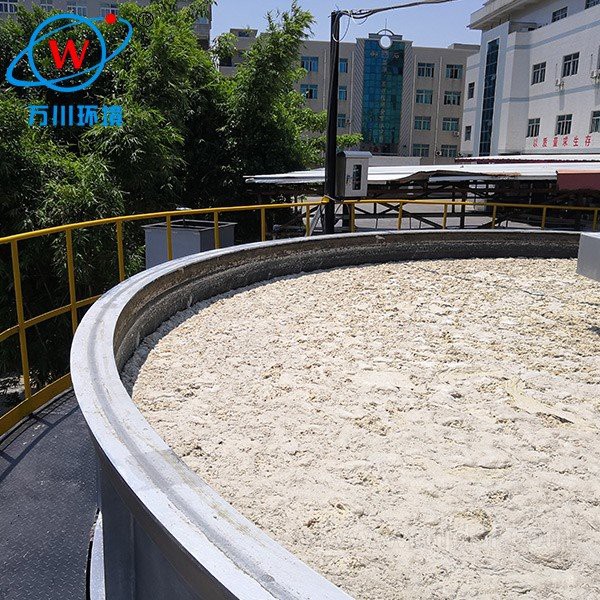

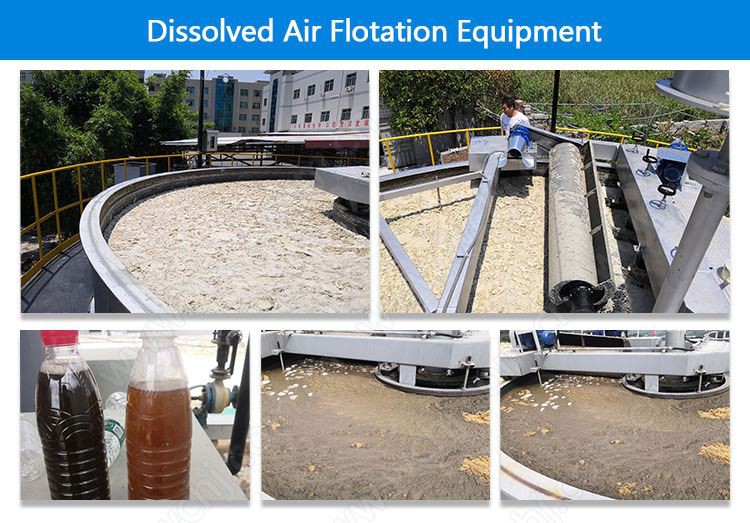

High efficiency dissolved air flotation equipment is a type of air flotation equipment that passes in or generates a large number of fine bubbles in the water, so that the air is attached to the suspended particles in the form of highly dispersed tiny bubbles, resulting in a state where the density is less than that of water. The principle of buoyancy makes it float on the water surface, Water treatment equipment that realizes solid-liquid separation.
Technical Data
| modle | Capacity | Dissolved air volume | Power KW | Dimension | DN (Nozzle list) | |||||||
| m³/h | m³/h | Reflux pump | Aerator | Skimmer | Blender | Pool diameter (m) | D/D1 | H/H1 | iniet (A) | Outlet (B) | Sludge outlet (C) | |
| WQF-2 | 15～20 | ～7 | 2.2 | 1.5 | 0.75 | 1.5 | Φ2 | 3.4/2.0 | 4.2/2.5 | 100 | 100 | 100 |
| WQF-3 | 30～40 | ～13 | 5.5 | 1.5 | 0.75 | 1.5 | Φ3 | 4.8/3.0 | 4.2/2.5 | 150 | 150 | 100 |
| WQF-4 | 50～80 | ～15 | 7.5 | 1.5 | 0.75 | 1.5 | Φ4 | 5.9/4.0 | 4.2/2.5 | 200 | 200 | 100 |
| WQF-5 | 80～100 | ～30 | 11 | 2.2 | 1.1 | 2.2 | Φ5 | 6.9/5.0 | 4.2/2.5 | 300 | 300 | 125 |
| WQF-6 | 100～150 | ～40 | 11 | 2.2 | 1.1 | 2.2 | Φ6 | 7.9/6.0 | 4.2/2.5 | 300 | 300 | 125 |
| WQF-7 | 150～180 | ～60 | 15 | 3 | 1.1 | 2.2 | Φ7 | 8.9/7.0 | 4.2/2.5 | 350 | 350 | 150 |
| WQF-8 | 200～250 | ～70 | 22 | 4 | 1.5 | 3 | Φ8 | 9.9/8.0 | 4.7/3.0 | 400 | 400 | 150 |
| WQF-9 | 250～300 | ～90 | 30 | 4 | 1.5 | 3 | Φ9 | 10.9/9.0 | 4.7/3.0 | 400 | 400 | 150 |
| WQF-10 | 300～400 | ～110 | 30 | 4 | 1.5 | 3 | Φ10 | 11.9/10.0 | 4.7/3.0 | 450 | 450 | 150 |
| WQF-11 | 400～500 | ～150 | 45 | 5.5 | 2.2 | 3 | Φ11 | 12.9/11.0 | 4.7/3.0 | 450 | 450 | 200 |
| WQF-12 | 500～625 | ～200 | 45 | 5.5 | 2.2 | 4 | Φ12 | 13.9/12.0 | 5.7/4.0 | 450 | 450 | 200 |
| WQF-13 | 625～750 | ～240 | 55 | 5.5 | 2.2 | 4 | Φ13 | 14.9/13.0 | 5.7/4.0 | 500 | 500 | 200 |
| WQF-14 | 800～950 | ～280 | 55 | 5.5 | 2.2 | 4 | Φ14 | 15.9/14.0 | 5.7/4.0 | 500 | 500 | 200 |
| WQF-15 | 1000～1150 | ～300 | 55 | 5.5 | 2.2 | 4 | Φ15 | 16.9/15.0 | 5.7/4.0 | 600 | 600 | 200 |
| WQF-16 | 1250～1400 | ～300 | 55 | 5.5 | 2.2 | 4 | Φ16 | 17.9/16.0 | 5.7/4.0 | 700 | 700 | 200 |
| WQF-18 | 1500～1800 | ～480 | 75 | 7.5 | 3 | 4 | Φ18 | 19.9/18.0 | 5.7/4.0 | 700 | 700 | 250 |
Features of complete air flotation machine:
1. Large processing capacity, high efficiency, and small land occupation. To
2. The process and equipment structure are simple, easy to use and maintain.
3. It can eliminate sludge expansion.
4. Aeration into the water during air flotation has a significant effect on removing surfactants and odors in the water. At the same time, because aeration increases the dissolved oxygen in the water, it provides favorable conditions for subsequent treatment.
5. For water sources with low temperature, low turbidity, and a lot of algae, the best effect can be achieved by using air flotation.
The complete set of air flotation machine is widely used in: textile sewage, printing and dyeing sewage, electroplating sewage, food factory sewage, slaughter sewage, meat processing factory sewage, tannery sewage, etc.
