Introduction
Dissolved air flotation plant is a liquid/solid separation or liquid/liquid separation process used to remove tiny suspended solids close to the density of water, colloid, oil, grease, etc. Wastewater dissolved air flotation is an innovation that combines the traditional dissolved air flotation concept with modern technology.

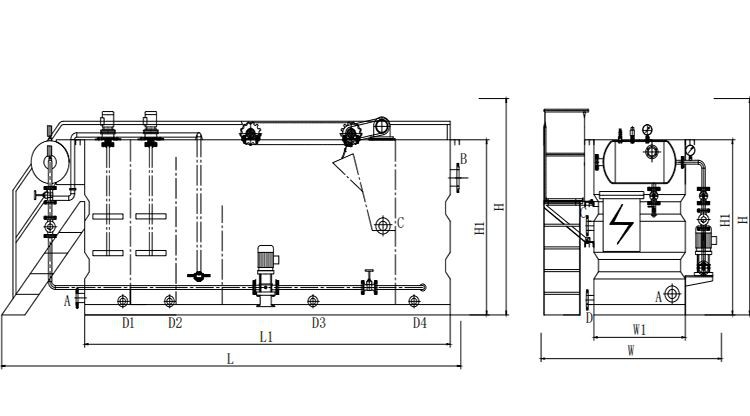

Technical Data
| Modle | Capacity | Dissolved air volume | Power KW | Dimension | DN (Nozzle list) | ||||||||
| m³/h | m³/h | Reflux pump | Aerator | Skimmer | Blender | L/L1 | W/W1 | H/H1 | iniet (A) | Outlet (B) | Sludge outlet (C) | Vent (D) | |
| WF-1 | ～1 | ～0.7 | 0.55 | 0.55 | 0.2 | 0.4 | 2.0/1.7 | 0.90/0.55 | 1.5/1.1 | 32 | 32 | 40 | 32 |
| WF-2 | ～2 | ～1 | 0.55 | 0.55 | 0.2 | 0.4 | 2.9/2.8 | 1.15/0.65 | 1.9/1.5 | 40 | 40 | 50 | 40 |
| WF-3 | ～3 | ～2 | 0.75 | 0.55 | 0.2 | 0.4 | 4.1/3.5 | 1.6/0.8 | 2.0/1.6 | 80 | 80 | 80 | 50 |
| WF-5 | ～5 | ～3 | 1.1 | 0.55 | 0.2 | 0.75 | 4.7/4.0 | 2.15/1.0 | 2.1/1.7 | 80 | 80 | 80 | 50 |
| WF-10 | ～10 | ～4 | 1.5/5.5 | 0.75 | 0.55 | 0.75 | 5.7/5.0 | 2.35/1.2 | 2.5/2.0 | 100 | 100 | 100 | 80 |
| WF-15 | ～15 | ～5 | 2.2/5.5 | 0.75 | 0.55 | 0.75 | 6.2/5.5 | 2.65/1.5 | 2.5/2.0 | 125 | 125 | 125 | 80 |
| WF-20 | ～20 | ～7 | 3.0/5.5 | 0.75 | 0.55 | 0.75 | 6.5/5.8 | 2.95/1.8 | 2.5/2.0 | 150 | 150 | 150 | 80 |
| WF-30 | ～30 | ～12 | 3.0/5.5 | 0.75 | 0.55 | 0.75 | 6.7/6.0 | 3.25/2.0 | 2.6/2.1 | 150 | 150 | 150 | 80 |
| WF-40 | ～40 | ～15 | 4.0/5.5 | 1.5 | 0.55 | 1.1 | 7.8/7.0 | 3.45/2.2 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-50 | ～50 | ～20 | 7.5 | 1.5 | 0.55 | 1.1 | 8.0/7.2 | 3.95/2.7 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-60 | ～60 | ～25 | 7.5 | 1.5 | 0.55 | 1.1 | 9.3/8.5 | 4.05/2.8 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-70 | ～70 | ～30 | 11 | 1.5 | 0.55 | 1.1 | 9.9/9.0 | 4.05/2.8 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-80 | ～80 | ～30 | 11 | 2.2 | 0.55 | 1.1 | 11.4/10.5 | 4.25/3.0 | 3.0/2.1 | 200 | 200 | 200 | 80 |
| WF-100 | ～100 | ～40 | 11 | 2.2 | 0.55 | 1.1 | 11.7/11.0 | 4.45/3.2 | 3.0/2.1 | 200 | 200 | 200 | 80 |
| WF-120 | ～120 | ～45 | 15 | 2.2 | 0.75 | 1.5 | 11.9/11.0 | 4.65/3.4 | 3.0/2.1 | 250 | 250 | 200 | 100 |
| WF-150 | ～150 | ～55 | 18.5 | 3 | 0.75 | 1.5 | 12.0/11.0 | 4.65/3.4 | 3.0/2.1 | 250 | 250 | 200 | 100 |
| WF-200 | ～200 | ～75 | 22 | 3 | 0.75 | 2.2 | 13.5/12.0 | 4.85/3.6 | 3.0/2.1 | 250 | 250 | 250 | 100 |
| WF-300 | ～300 | ～100 | 30 | 3 | 0.75 | 3 | 15.5/14.0 | 4.85/3.6 | 3.0/2.1 | 300 | 400 | 250 | 100 |

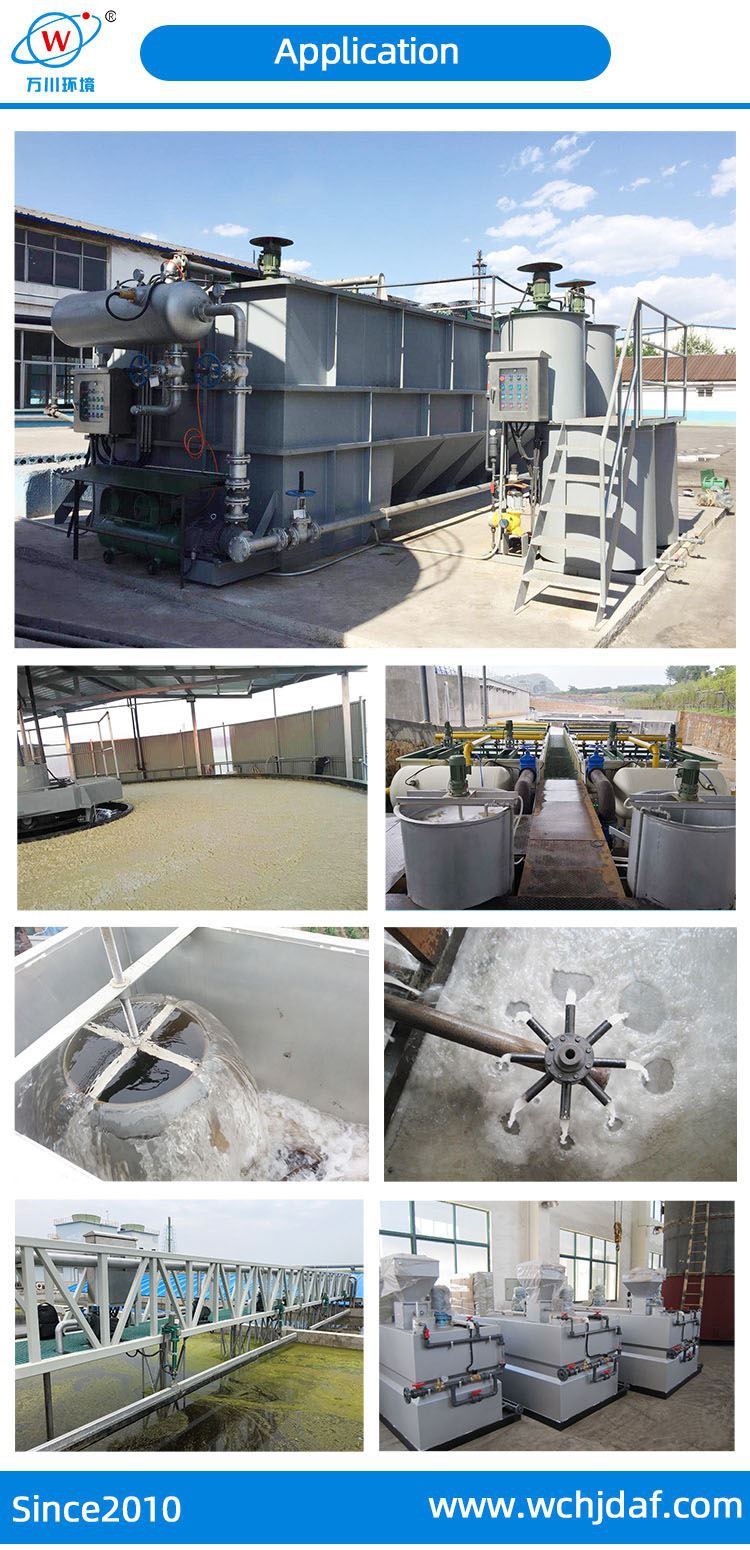

Application
In application, especially in the pretreatment process such as printing and dyeing wastewater pretreatment, precipitation phenomenon sometimes occurs. Severe settlement will directly affect the quality of the condenser outlet and the stability of operation.
Part of our customers
