Product Usage
It is mainly used in municipal and industrial sewage treatment to intercept and automatically remove particles and block suspended solids in sewage.

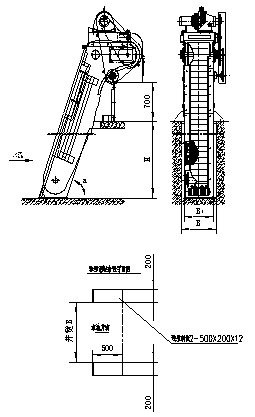

Working principle and structure
The rotary chain grille decontamination machine consists of a drive device, a frame, a rake grille device, a guide device, and a cleaning mechanism. It consists of a special shape of rake teeth arranged on the horizontal axis according to a certain assembly order and quantity to form a rake tooth chain, which is assembled into different grid gaps according to the flow of water, and is installed at the entrance of the pump station or water treatment system. , When the transmission system drives the rake tooth chain to move from bottom to top, the rake tooth chain also carries suspended substances and other sundries to separate from the liquid, and the liquid flows through the grid gap. After the equipment rotates to the upper apex, the rake teeth change the running direction. , moving from top to bottom. Due to the weight of the material, it falls off the rake teeth by itself. When the rake teeth turn from the reverse side to the bottom of the equipment, it starts to move from bottom to top again. This cycle runs continuously and continuously cleans debris from the water. To achieve the purpose of solid-liquid separation.
Features
1. The tooth rake goes down after the grid, and goes up in front of the grid to pick up the slag.
2. When there is a lot of sediment (silt, gravel) at the bottom, the rake will not be blocked to avoid accidents.
3. The action procedure is reliable and the failure rate is low.
4. The whole machine is shipped from the factory after debugging, and it is easy to install.
5. Thorough slag cleaning, high separation efficiency and easy maintenance.

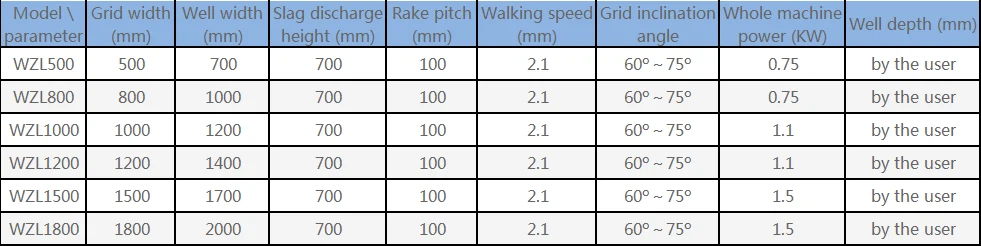

Model specification and main technical parameters
