Introduction

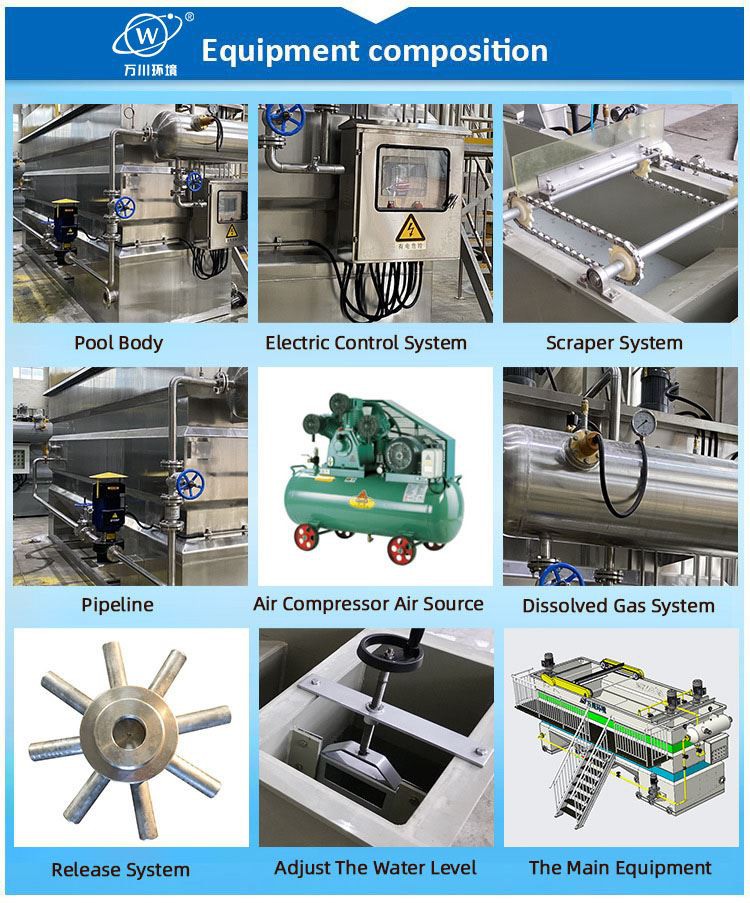

WF type combined air flotation equipment is composed of air flotation tank body, dissolved air system, dissolved air water return pipeline, dissolved air water release device, slag scraper and electric control system. Air flotation mainly plays a role of solid-liquid separation (at the same time it can reduce COD, BOD, chromaticity, etc.).
Working Principle
The refluxing water passes through the jet air suction device, and under a certain working pressure, the air is dissolved into the water to the greatest extent and becomes dissolved air water. The dissolved air water is released in the contact area of the air flotation tank through the rapid decompression of the release device to form Micro bubbles with a diameter of 5-10μm. The microbubbles can bond with the flocs in the raw water.
| Modle | Capacity | Dissolved air volume | Power KW | Dimension | DN (Nozzle list) | ||||||||
| m³/h | m³/h | Reflux pump | Aerator | Skimmer | Blender | L/L1 | W/W1 | H/H1 | iniet (A) | Outlet (B) | Sludge outlet (C) | Vent (D) | |
| WF-1 | ～1 | ～0.7 | 0.55 | 0.55 | 0.2 | 0.4 | 2.0/1.7 | 0.90/0.55 | 1.5/1.1 | 32 | 32 | 40 | 32 |
| WF-2 | ～2 | ～1 | 0.55 | 0.55 | 0.2 | 0.4 | 2.9/2.8 | 1.15/0.65 | 1.9/1.5 | 40 | 40 | 50 | 40 |
| WF-3 | ～3 | ～2 | 0.75 | 0.55 | 0.2 | 0.4 | 4.1/3.5 | 1.6/0.8 | 2.0/1.6 | 80 | 80 | 80 | 50 |
| WF-5 | ～5 | ～3 | 1.1 | 0.55 | 0.2 | 0.75 | 4.7/4.0 | 2.15/1.0 | 2.1/1.7 | 80 | 80 | 80 | 50 |
| WF-10 | ～10 | ～4 | 1.5/5.5 | 0.75 | 0.55 | 0.75 | 5.7/5.0 | 2.35/1.2 | 2.5/2.0 | 100 | 100 | 100 | 80 |
| WF-15 | ～15 | ～5 | 2.2/5.5 | 0.75 | 0.55 | 0.75 | 6.2/5.5 | 2.65/1.5 | 2.5/2.0 | 125 | 125 | 125 | 80 |
| WF-20 | ～20 | ～7 | 3.0/5.5 | 0.75 | 0.55 | 0.75 | 6.5/5.8 | 2.95/1.8 | 2.5/2.0 | 150 | 150 | 150 | 80 |
| WF-30 | ～30 | ～12 | 3.0/5.5 | 0.75 | 0.55 | 0.75 | 6.7/6.0 | 3.25/2.0 | 2.6/2.1 | 150 | 150 | 150 | 80 |
| WF-40 | ～40 | ～15 | 4.0/5.5 | 1.5 | 0.55 | 1.1 | 7.8/7.0 | 3.45/2.2 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-50 | ～50 | ～20 | 7.5 | 1.5 | 0.55 | 1.1 | 8.0/7.2 | 3.95/2.7 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-60 | ～60 | ～25 | 7.5 | 1.5 | 0.55 | 1.1 | 9.3/8.5 | 4.05/2.8 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-70 | ～70 | ～30 | 11 | 1.5 | 0.55 | 1.1 | 9.9/9.0 | 4.05/2.8 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-80 | ～80 | ～30 | 11 | 2.2 | 0.55 | 1.1 | 11.4/10.5 | 4.25/3.0 | 3.0/2.1 | 200 | 200 | 200 | 80 |
| WF-100 | ～100 | ～40 | 11 | 2.2 | 0.55 | 1.1 | 11.7/11.0 | 4.45/3.2 | 3.0/2.1 | 200 | 200 | 200 | 80 |
| WF-120 | ～120 | ～45 | 15 | 2.2 | 0.75 | 1.5 | 11.9/11.0 | 4.65/3.4 | 3.0/2.1 | 250 | 250 | 200 | 100 |
| WF-150 | ～150 | ～55 | 18.5 | 3 | 0.75 | 1.5 | 12.0/11.0 | 4.65/3.4 | 3.0/2.1 | 250 | 250 | 200 | 100 |
| WF-200 | ～200 | ～75 | 22 | 3 | 0.75 | 2.2 | 13.5/12.0 | 4.85/3.6 | 3.0/2.1 | 250 | 250 | 250 | 100 |
| WF-300 | ～300 | ～100 | 30 | 3 | 0.75 | 3 | 15.5/14.0 | 4.85/3.6 | 3.0/2.1 | 300 | 400 | 250 | 100 |
Model meaning

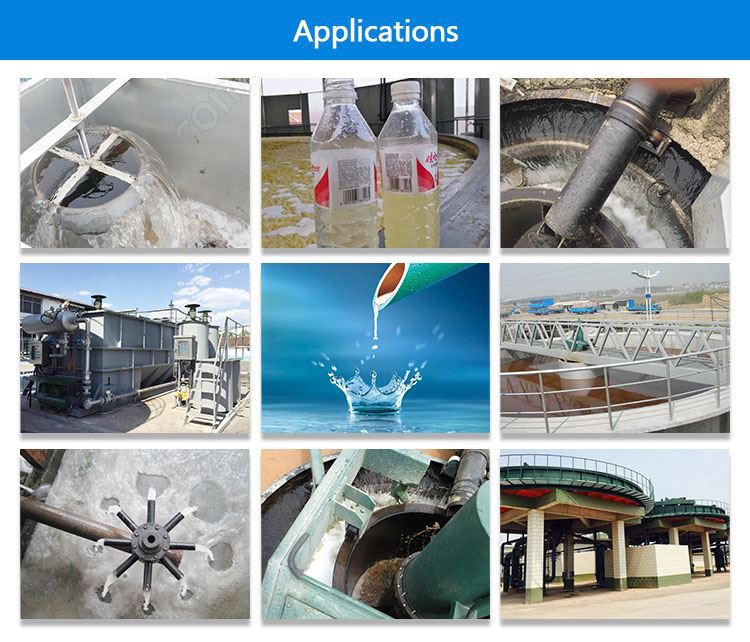

Application Field
● The lake water and river water in the water supply are used as tap water and landscape water to remove algae and reduce turbidity, etc.
● Domestic sewage pretreatment and sludge thickening.
● Papermaking white water pulp recovery and clean water reuse.
● Chromaticity and impurity removal of printing and dyeing wastewater.
● Removal of various heavy metal ions in electroplating wastewater.
● Separation of refinery wastewater and oil pollution.
● Removal of impurities in tanning wastewater.
● Treatment of industrial wastewater such as chemical industry, food, wool spinning, slaughter, brewing, mineral processing, washing, etc.
Technical Advantages
● The system adopts an integrated combination method, which effectively reduces space requirements, occupies a small area, low energy consumption, and is convenient for installation and transportation.
● High degree of automation, convenient operation and simple management.
● The dissolved gas efficiency is high, the treatment effect is stable, and the dissolved gas pressure and the dissolved gas-water reflux ratio can be adjusted according to needs.
● According to different water quality and process requirements: single dissolved gas device or double dissolved gas device can be provided.
● The high-efficiency releaser is adopted to improve the utilization efficiency of dissolved air and water while ensuring the stability of the air flotation equipment.
● Use low-noise compressors to solve the noise problem that has plagued people for a long time.
● The system adopts a standardized configuration, and any accessory can generally be purchased on-site or commissioned for processing.
