Introduction

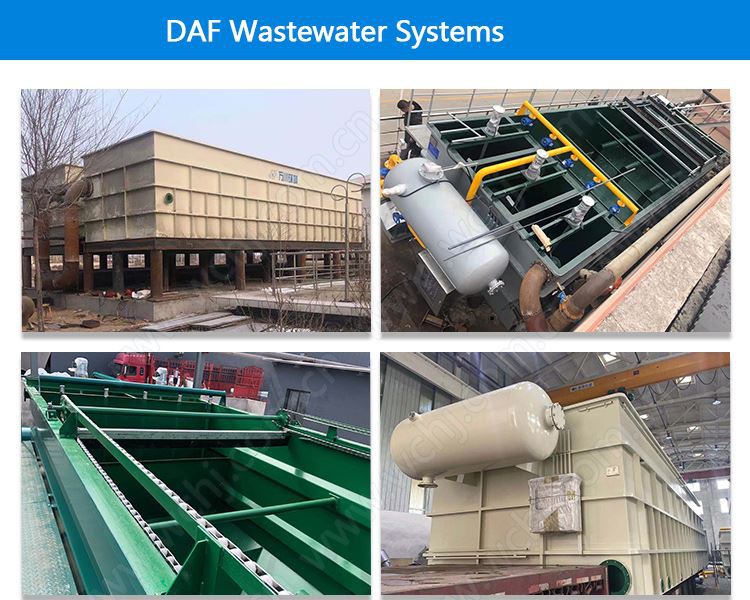

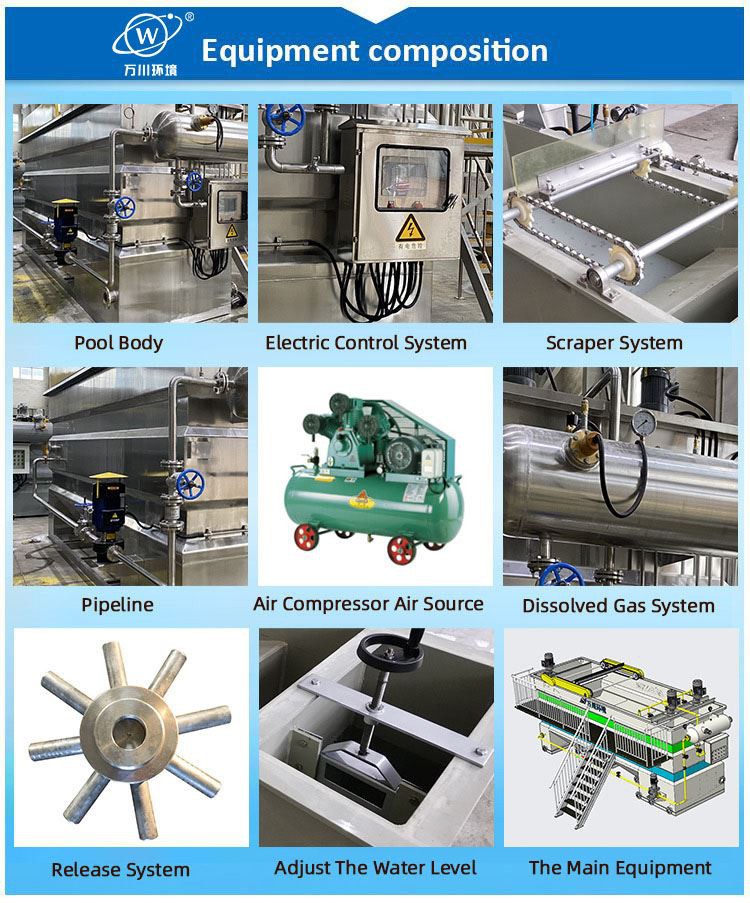

DAF wastewater system equipments are composed of air flotation tank body, dissolved air system, dissolved air water return pipeline, dissolved air water release device, slag scraper and electric control system. Air flotation mainly plays a role of solid-liquid separation (at the same time it can reduce COD, BOD, chromaticity, etc.).
Technical Data
| Modle | Capacity | Dissolved air volume | Power KW | Dimension | DN (Nozzle list) | ||||||||
| m³/h | m³/h | Reflux pump | Aerator | Skimmer | Blender | L/L1 | W/W1 | H/H1 | iniet (A) | Outlet (B) | Sludge outlet (C) | Vent (D) | |
| WF-1 | ～1 | ～0.7 | 0.55 | 0.55 | 0.2 | 0.4 | 2.0/1.7 | 0.90/0.55 | 1.5/1.1 | 32 | 32 | 40 | 32 |
| WF-2 | ～2 | ～1 | 0.55 | 0.55 | 0.2 | 0.4 | 2.9/2.8 | 1.15/0.65 | 1.9/1.5 | 40 | 40 | 50 | 40 |
| WF-3 | ～3 | ～2 | 0.75 | 0.55 | 0.2 | 0.4 | 4.1/3.5 | 1.6/0.8 | 2.0/1.6 | 80 | 80 | 80 | 50 |
| WF-5 | ～5 | ～3 | 1.1 | 0.55 | 0.2 | 0.75 | 4.7/4.0 | 2.15/1.0 | 2.1/1.7 | 80 | 80 | 80 | 50 |
| WF-10 | ～10 | ～4 | 1.5/5.5 | 0.75 | 0.55 | 0.75 | 5.7/5.0 | 2.35/1.2 | 2.5/2.0 | 100 | 100 | 100 | 80 |
| WF-15 | ～15 | ～5 | 2.2/5.5 | 0.75 | 0.55 | 0.75 | 6.2/5.5 | 2.65/1.5 | 2.5/2.0 | 125 | 125 | 125 | 80 |
| WF-20 | ～20 | ～7 | 3.0/5.5 | 0.75 | 0.55 | 0.75 | 6.5/5.8 | 2.95/1.8 | 2.5/2.0 | 150 | 150 | 150 | 80 |
| WF-30 | ～30 | ～12 | 3.0/5.5 | 0.75 | 0.55 | 0.75 | 6.7/6.0 | 3.25/2.0 | 2.6/2.1 | 150 | 150 | 150 | 80 |
| WF-40 | ～40 | ～15 | 4.0/5.5 | 1.5 | 0.55 | 1.1 | 7.8/7.0 | 3.45/2.2 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-50 | ～50 | ～20 | 7.5 | 1.5 | 0.55 | 1.1 | 8.0/7.2 | 3.95/2.7 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-60 | ～60 | ～25 | 7.5 | 1.5 | 0.55 | 1.1 | 9.3/8.5 | 4.05/2.8 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-70 | ～70 | ～30 | 11 | 1.5 | 0.55 | 1.1 | 9.9/9.0 | 4.05/2.8 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-80 | ～80 | ～30 | 11 | 2.2 | 0.55 | 1.1 | 11.4/10.5 | 4.25/3.0 | 3.0/2.1 | 200 | 200 | 200 | 80 |
| WF-100 | ～100 | ～40 | 11 | 2.2 | 0.55 | 1.1 | 11.7/11.0 | 4.45/3.2 | 3.0/2.1 | 200 | 200 | 200 | 80 |
| WF-120 | ～120 | ～45 | 15 | 2.2 | 0.75 | 1.5 | 11.9/11.0 | 4.65/3.4 | 3.0/2.1 | 250 | 250 | 200 | 100 |
| WF-150 | ～150 | ～55 | 18.5 | 3 | 0.75 | 1.5 | 12.0/11.0 | 4.65/3.4 | 3.0/2.1 | 250 | 250 | 200 | 100 |
| WF-200 | ～200 | ～75 | 22 | 3 | 0.75 | 2.2 | 13.5/12.0 | 4.85/3.6 | 3.0/2.1 | 250 | 250 | 250 | 100 |
| WF-300 | ～300 | ～100 | 30 | 3 | 0.75 | 3 | 15.5/14.0 | 4.85/3.6 | 3.0/2.1 | 300 | 400 | 250 | 100 |
Product Advantage
Dissolved air flotation system, unique technology-high-frequency common rail injection, high-speed rotation generates strong centrifugal force; Micron air integrated jet system, within 3 seconds (27%), the dissolved ratio of air and water is close to the maximum value of Henry's law It provides a platform for large-scale microbubbles and greatly reduces the dynamic factors.
Packaging & Delivery
