Introduction

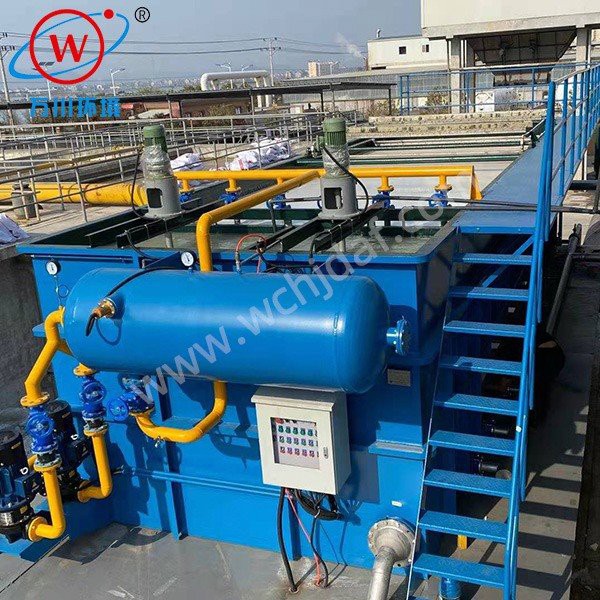

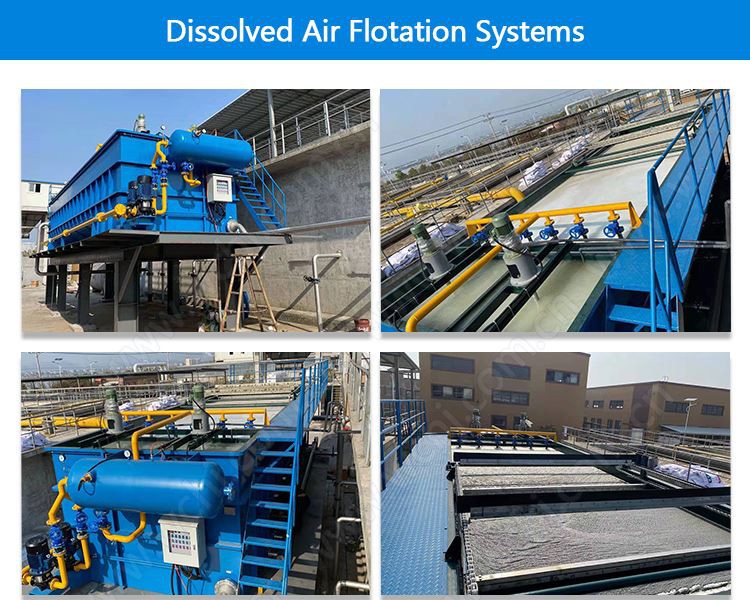

Dissolved air flotation systems from Wuxi Wanchuan environmental equ-ipment suitable for medium and small water volume sewage pretreatment and tertiary treatment, Landfill leachate and kitchen waste wastewater treatment, Sludge concentration, biological mixture separation.
Significant Advantages
The sludge concentration of 8000~15000mg/L can be concentrated to more than 50kg/m3
Automatic slag discharge, 3~7% sludge concentration
| Modle | Capacity | Dissolved air volume | Power KW | Dimension (m) | DN (Nozzle list) | ||||||||
| m³/h | m³/h | Reflux pump | Aerator | Skimmer | Blender | L/L1 | W/W1 | H/H1 | iniet (A) | Outlet (B) | Sludge outlet (C) | Vent (D) | |
| WF-1 | ～1 | ～0.7 | 0.55 | 0.55 | 0.2 | 0.4 | 2.0/1.7 | 0.90/0.55 | 1.5/1.1 | 32 | 32 | 40 | 32 |
| WF-2 | ～2 | ～1 | 0.55 | 0.55 | 0.2 | 0.4 | 2.9/2.8 | 1.15/0.65 | 1.9/1.5 | 40 | 40 | 50 | 40 |
| WF-3 | ～3 | ～2 | 0.75 | 0.55 | 0.2 | 0.4 | 4.1/3.5 | 1.6/0.8 | 2.0/1.6 | 80 | 80 | 80 | 50 |
| WF-5 | ～5 | ～3 | 1.1 | 0.55 | 0.2 | 0.75 | 4.7/4.0 | 2.15/1.0 | 2.1/1.7 | 80 | 80 | 80 | 50 |
| WF-10 | ～10 | ～4 | 1.5/5.5 | 0.75 | 0.55 | 0.75 | 5.7/5.0 | 2.35/1.2 | 2.5/2.0 | 100 | 100 | 100 | 80 |
| WF-15 | ～15 | ～5 | 2.2/5.5 | 0.75 | 0.55 | 0.75 | 6.2/5.5 | 2.65/1.5 | 2.5/2.0 | 125 | 125 | 125 | 80 |
| WF-20 | ～20 | ～7 | 3.0/5.5 | 0.75 | 0.55 | 0.75 | 6.5/5.8 | 2.95/1.8 | 2.5/2.0 | 150 | 150 | 150 | 80 |
| WF-30 | ～30 | ～12 | 3.0/5.5 | 0.75 | 0.55 | 0.75 | 6.7/6.0 | 3.25/2.0 | 2.6/2.1 | 150 | 150 | 150 | 80 |
| WF-40 | ～40 | ～15 | 4.0/5.5 | 1.5 | 0.55 | 1.1 | 7.8/7.0 | 3.45/2.2 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-50 | ～50 | ～20 | 7.5 | 1.5 | 0.55 | 1.1 | 8.0/7.2 | 3.95/2.7 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-60 | ～60 | ～25 | 7.5 | 1.5 | 0.55 | 1.1 | 9.3/8.5 | 4.05/2.8 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-70 | ～70 | ～30 | 11 | 1.5 | 0.55 | 1.1 | 9.9/9.0 | 4.05/2.8 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-80 | ～80 | ～30 | 11 | 2.2 | 0.55 | 1.1 | 11.4/10.5 | 4.25/3.0 | 3.0/2.1 | 200 | 200 | 200 | 80 |
| WF-100 | ～100 | ～40 | 11 | 2.2 | 0.55 | 1.1 | 11.7/11.0 | 4.45/3.2 | 3.0/2.1 | 200 | 200 | 200 | 80 |
| WF-120 | ～120 | ～45 | 15 | 2.2 | 0.75 | 1.5 | 11.9/11.0 | 4.65/3.4 | 3.0/2.1 | 250 | 250 | 200 | 100 |
| WF-150 | ～150 | ～55 | 18.5 | 3 | 0.75 | 1.5 | 12.0/11.0 | 4.65/3.4 | 3.0/2.1 | 250 | 250 | 200 | 100 |
| WF-200 | ～200 | ～75 | 22 | 3 | 0.75 | 2.2 | 13.5/12.0 | 4.85/3.6 | 3.0/2.1 | 250 | 250 | 250 | 100 |
| WF-300 | ～300 | ～100 | 30 | 3 | 0.75 | 3 | 15.5/14.0 | 4.85/3.6 | 3.0/2.1 | 300 | 400 | 250 | 100 |
Reason For Choosing
Reduce subsequent sludge treatment operation and investment costs, and improve the efficiency of sludge treatment equipment
Efficient solid-liquid separation comes from unique dissolved gas and ion bubble manufacturing technology
Instant startup and shutdown
