Introduction
High-efficiency shallow flotation mainly uses a microbubble generator to generate a large number of tiny bubbles. After these bubbles come into contact with pollutants such as suspended matter and grease in the water, they adhere to the surface of the bubbles to form a floating body. Since the specific gravity of the floating body is less than that of water, it will quickly float to the water surface, thereby achieving solid-liquid separation. Its uniqueness lies in the shallow design of the flotation pool, and the water flow in the pool is spiral, which greatly improves the flotation efficiency.
Technical Data

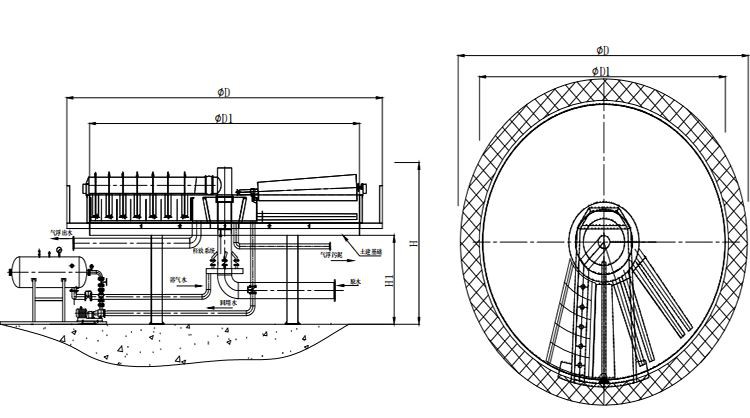

| Modle | Capacity | Dissolved air volume | Power KW | Dimension | DN(Nozzle list) | |||||||
| m³/h | m³/h | Reflux pump | Aerator | Skimmer | Blender | Pool diameter (m) | D/D1 | H/H1 | iniet (A) | Outlet (B) | Sludge outlet (C) | |
| WQF-2 | 15～20 | ～7 | 2.2 | 1.5 | 0.75 | 1.5 | Φ2 | 3.4/2.0 | 4.2/2.5 | 100 | 100 | 100 |
| WQF-3 | 30～40 | ～13 | 5.5 | 1.5 | 0.75 | 1.5 | Φ3 | 4.8/3.0 | 4.2/2.5 | 150 | 150 | 100 |
| WQF-4 | 50～80 | ～15 | 7.5 | 1.5 | 0.75 | 1.5 | Φ4 | 5.9/4.0 | 4.2/2.5 | 200 | 200 | 100 |
| WQF-5 | 80～100 | ～30 | 11 | 2.2 | 1.1 | 2.2 | Φ5 | 6.9/5.0 | 4.2/2.5 | 300 | 300 | 125 |
| WQF-6 | 100～150 | ～40 | 11 | 2.2 | 1.1 | 2.2 | Φ6 | 7.9/6.0 | 4.2/2.5 | 300 | 300 | 125 |
| WQF-7 | 150～180 | ～60 | 15 | 3 | 1.1 | 2.2 | Φ7 | 8.9/7.0 | 4.2/2.5 | 350 | 350 | 150 |
| WQF-8 | 200～250 | ～70 | 22 | 4 | 1.5 | 3 | Φ8 | 9.9/8.0 | 4.7/3.0 | 400 | 400 | 150 |
| WQF-9 | 250～300 | ～90 | 30 | 4 | 1.5 | 3 | Φ9 | 10.9/9.0 | 4.7/3.0 | 400 | 400 | 150 |
| WQF-10 | 300～400 | ～110 | 30 | 4 | 1.5 | 3 | Φ10 | 11.9/10.0 | 4.7/3.0 | 450 | 450 | 150 |
| WQF-11 | 400～500 | ～150 | 45 | 5.5 | 2.2 | 3 | Φ11 | 12.9/11.0 | 4.7/3.0 | 450 | 450 | 200 |
| WQF-12 | 500～625 | ～200 | 45 | 5.5 | 2.2 | 4 | Φ12 | 13.9/12.0 | 5.7/4.0 | 450 | 450 | 200 |
| WQF-13 | 625～750 | ～240 | 55 | 5.5 | 2.2 | 4 | Φ13 | 14.9/13.0 | 5.7/4.0 | 500 | 500 | 200 |
| WQF-14 | 800～950 | ～280 | 55 | 5.5 | 2.2 | 4 | Φ14 | 15.9/14.0 | 5.7/4.0 | 500 | 500 | 200 |
| WQF-15 | 1000～1150 | ～300 | 55 | 5.5 | 2.2 | 4 | Φ15 | 16.9/15.0 | 5.7/4.0 | 600 | 600 | 200 |
| WQF-16 | 1250～1400 | ～300 | 55 | 5.5 | 2.2 | 4 | Φ16 | 17.9/16.0 | 5.7/4.0 | 700 | 700 | 200 |
| WQF-18 | 1500～1800 | ～480 | 75 | 7.5 | 3 | 4 | Φ18 | 19.9/18.0 | 5.7/4.0 | 700 | 700 | 250 |

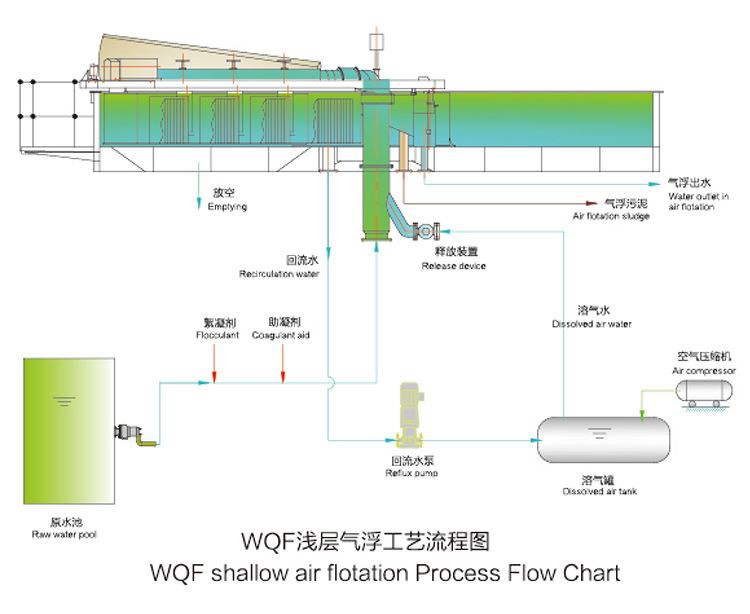

Structure And Working Process
When the purified water collection pipe is moved here, the purified water can be discharged. To the outside of the pool. In order to make the water inlet and outlet move synchronously, the machine is designed in a circular shape, and the inlet and outlet pipes are placed on the turntable to make it rotate around the center. This moving water distribution method produces "zero speed" The suspended matter in the raw water floats from the water to the surface fast, and the raw water can meet the purification requirements in three minutes.
Technical advantages
High treatment efficiency: Special Dissolved Air Flotation Machine for Wastewater Treatment can quickly remove suspended solids, grease and other pollutants in the water, and the effluent water quality is good.
Short residence time: Due to the shallowness of the flotation tank and the fast water flow, the sewage stays in the tank for a short time, which can greatly improve the treatment capacity.
Small footprint: Compared with traditional flotation equipment, high-efficiency shallow flotation occupies a smaller area and is suitable for occasions with limited space.
Simple operation: Dissolved Air Flotation Systems (DAF) equipment has a high degree of automation, stable operation, and convenient operation and maintenance.
Why Choos Us
Our company has focused on the R&D and production of environmental protection equipment for many years. We have many professional and technical personnel, modern workshops, sophisticated machinery and operating equipment, and advanced testing methods to ensure genuine quality.
When it comes to wastewater treatment, our PRC Efficient Shallow Air Flotation is the obvious choice. With advanced technology, it can efficiently remove suspended solids, grease and other pollutants in sewage, and the purification effect is significant and stable.
