Introduction

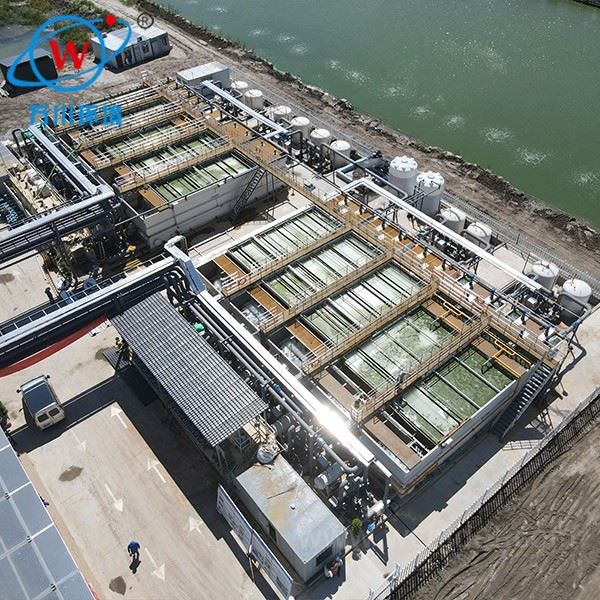

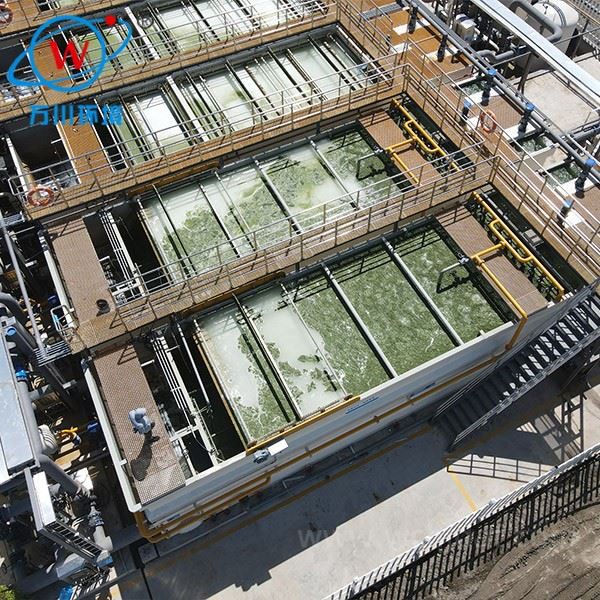

Integrated river purification high-speed dissolved air flotation is specially designed to remove various pollutants in water bodies. It can effectively remove inorganic particles, algae, colloids, oils and organic matter in rivers, reservoirs, lakes and oceans, including total organic carbon (TOC), ammonia nitrogen and total phosphorus (TP). The device completes efficient oxygenation of the water body during the purification process, effectively preventing environmental problems such as black odor and algae blooms in the water body. Ensure that water bodies reach good purification standards and maintain the ecological balance and natural beauty of the water environment.
Technical Data
| Modle | Capacity | Dissolved air volume | Power KW | Dimension | DN(Nozzle list) | |||||||
| m³/h | m³/h | Reflux pump | Aerator | Skimmer | Blender | Pool diameter (m) | D/D1 | H/H1 | iniet (A) | Outlet (B) | Sludge outlet (C) | |
| WQF-2 | 15～20 | ～7 | 2.2 | 1.5 | 0.75 | 1.5 | Φ2 | 3.4/2.0 | 4.2/2.5 | 100 | 100 | 100 |
| WQF-3 | 30～40 | ～13 | 5.5 | 1.5 | 0.75 | 1.5 | Φ3 | 4.8/3.0 | 4.2/2.5 | 150 | 150 | 100 |
| WQF-4 | 50～80 | ～15 | 7.5 | 1.5 | 0.75 | 1.5 | Φ4 | 5.9/4.0 | 4.2/2.5 | 200 | 200 | 100 |
| WQF-5 | 80～100 | ～30 | 11 | 2.2 | 1.1 | 2.2 | Φ5 | 6.9/5.0 | 4.2/2.5 | 300 | 300 | 125 |
| WQF-6 | 100～150 | ～40 | 11 | 2.2 | 1.1 | 2.2 | Φ6 | 7.9/6.0 | 4.2/2.5 | 300 | 300 | 125 |
| WQF-7 | 150～180 | ～60 | 15 | 3 | 1.1 | 2.2 | Φ7 | 8.9/7.0 | 4.2/2.5 | 350 | 350 | 150 |
| WQF-8 | 200～250 | ～70 | 22 | 4 | 1.5 | 3 | Φ8 | 9.9/8.0 | 4.7/3.0 | 400 | 400 | 150 |
| WQF-9 | 250～300 | ～90 | 30 | 4 | 1.5 | 3 | Φ9 | 10.9/9.0 | 4.7/3.0 | 400 | 400 | 150 |
| WQF-10 | 300～400 | ～110 | 30 | 4 | 1.5 | 3 | Φ10 | 11.9/10.0 | 4.7/3.0 | 450 | 450 | 150 |
| WQF-11 | 400～500 | ～150 | 45 | 5.5 | 2.2 | 3 | Φ11 | 12.9/11.0 | 4.7/3.0 | 450 | 450 | 200 |
| WQF-12 | 500～625 | ～200 | 45 | 5.5 | 2.2 | 4 | Φ12 | 13.9/12.0 | 5.7/4.0 | 450 | 450 | 200 |
| WQF-13 | 625～750 | ～240 | 55 | 5.5 | 2.2 | 4 | Φ13 | 14.9/13.0 | 5.7/4.0 | 500 | 500 | 200 |
| WQF-14 | 800～950 | ～280 | 55 | 5.5 | 2.2 | 4 | Φ14 | 15.9/14.0 | 5.7/4.0 | 500 | 500 | 200 |
| WQF-15 | 1000～1150 | ～300 | 55 | 5.5 | 2.2 | 4 | Φ15 | 16.9/15.0 | 5.7/4.0 | 600 | 600 | 200 |
| WQF-16 | 1250～1400 | ～300 | 55 | 5.5 | 2.2 | 4 | Φ16 | 17.9/16.0 | 5.7/4.0 | 700 | 700 | 200 |
| WQF-18 | 1500～1800 | ～480 | 75 | 7.5 | 3 | 4 | Φ18 | 19.9/18.0 | 5.7/4.0 | 700 | 700 | 250 |
Product Advantages
Energy saving and efficient: Integrated river purification high speed dissolved air flotation uses advanced technology to achieve low energy consumption operation, significantly reducing operating costs while saving space.
High hydraulic load: The surface hydraulic load is as high as 20-30m3/(m2·H), which is more than 10 times that of traditional equipment, and the floor area is only one-fifth of traditional equipment.
Excellent processing capacity: the maximum processing capacity of a single complete set of skid-mounted equipment can reach 25,000 m³/d per day
Economic operation: the operating cost per ton of water is controlled within 0.1 yuan
Significant improvement: more than 95% algae, colloid, oil and organic matter removal rate.
Application
Air flotation machine is mainly used for solid-liquid or liquid-liquid separation. Through the dissolved air and release system, a large number of fine bubbles are generated in the water to make them adhere to the solid or liquid particles in the waste water with a density close to that of water, resulting in a state where the overall density is less than that of water, and relying on buoyancy to make it rise to the water surface. To achieve the purpose of solid-liquid or liquid-liquid separation. In the field of water treatment, air flotation machines are used in the following areas:
1. Separate fine suspended solids, algae and other micro-aggregates in surface water.
2. Recycling useful substances in industrial wastewater, such as pulp in papermaking wastewater.
3. Replace the secondary settling tank to separate and concentrate the sludge in the water.
