Introduction

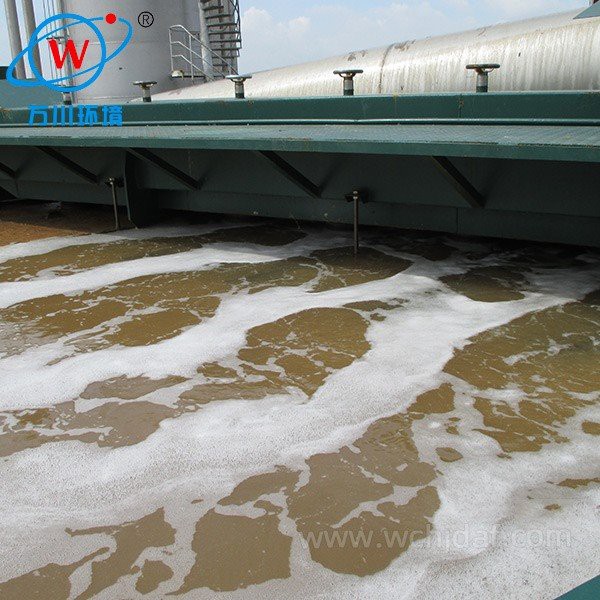

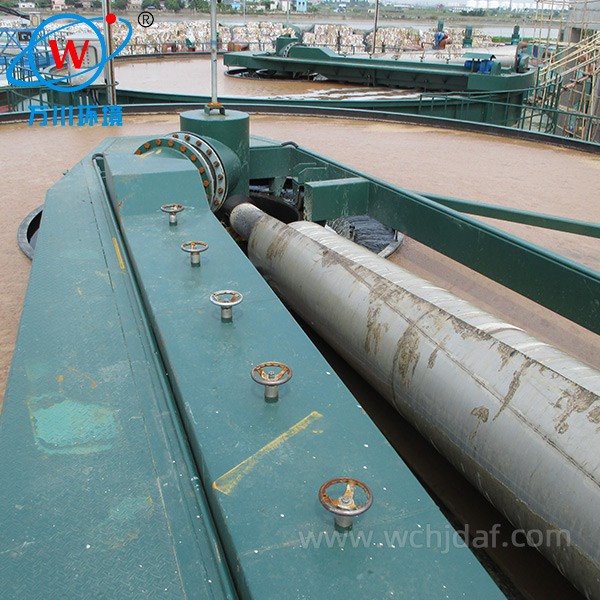

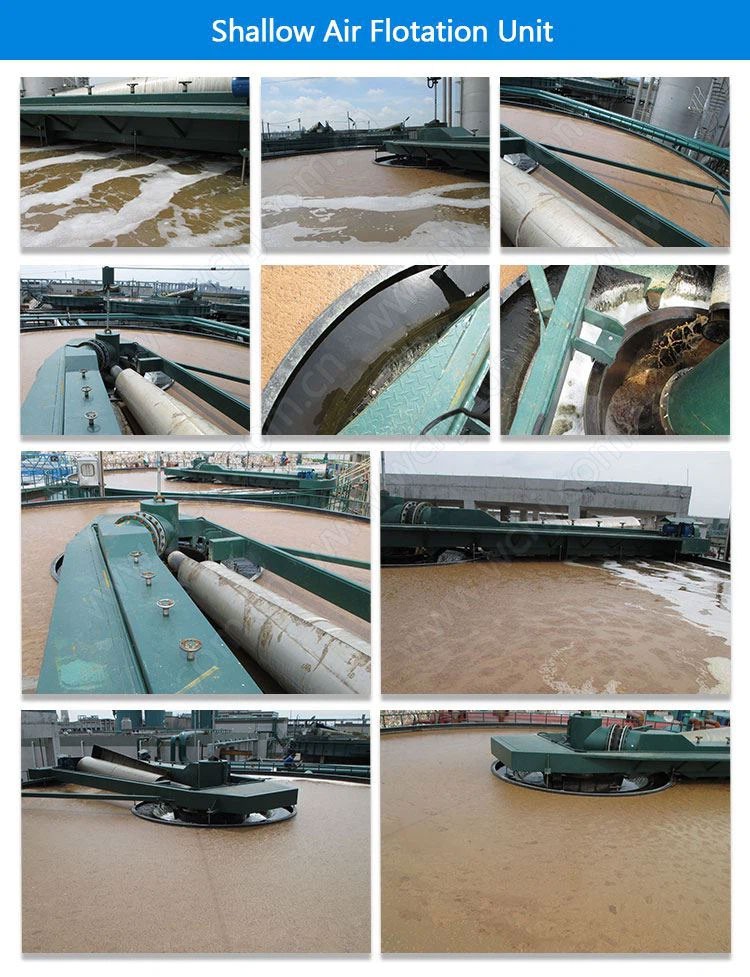

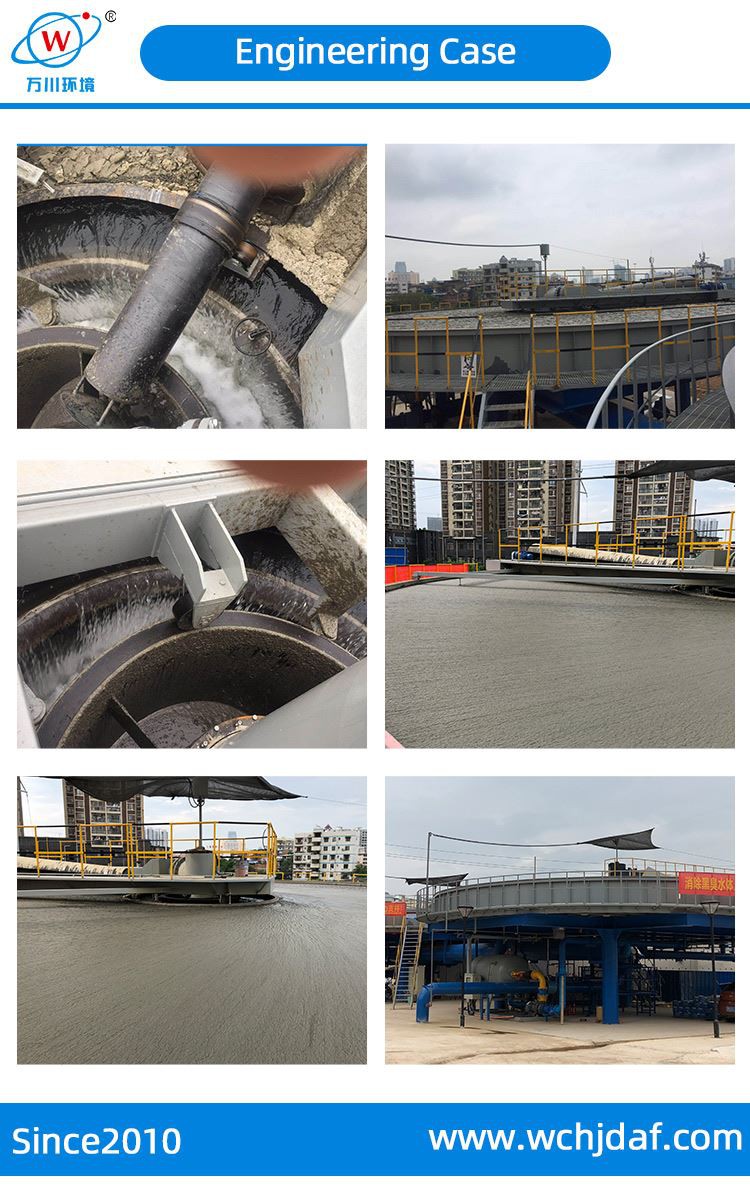

Shallow air flotation unit is an advanced fast air flotation system. On the basis of traditional air flotation theory, the "shallow layer theory" and "zero speed" principle have been successfully applied. The main body of the equipment consists of a pool body, a rotating water distribution mechanism, It consists of a dissolved air release mechanism, a frame mechanism, and a water collection mechanism. The water inlet, the water outlet and the scum discharge outlet are all concentrated in the pool area. The water distribution mechanism, the water collection mechanism, and the dissolved air release mechanism are all closely connected to the frame and rotate around the center of the pool body.
Technical Data
| Modle | Capacity | Dissolved air volume | Power KW | Dmension | DN (Nozzle list) | |||||||
| m³/h | m³/h | Reflux pump | Aerator | Skimmer | Blender | Pool diameter (m) | D/D1 | H/H1 | iniet (A) | Outlet (B) | Sludge outlet (C) | |
| WQF-2 | 15～20 | ～7 | 2.2 | 1.5 | 0.75 | 1.5 | Φ2 | 3.4/2.0 | 4.2/2.5 | 100 | 100 | 100 |
| WQF-3 | 30～40 | ～13 | 5.5 | 1.5 | 0.75 | 1.5 | Φ3 | 4.8/3.0 | 4.2/2.5 | 150 | 150 | 100 |
| WQF-4 | 50～80 | ～15 | 7.5 | 1.5 | 0.75 | 1.5 | Φ4 | 5.9/4.0 | 4.2/2.5 | 200 | 200 | 100 |
| WQF-5 | 80～100 | ～30 | 11 | 2.2 | 1.1 | 2.2 | Φ5 | 6.9/5.0 | 4.2/2.5 | 300 | 300 | 125 |
| WQF-6 | 100～150 | ～40 | 11 | 2.2 | 1.1 | 2.2 | Φ6 | 7.9/6.0 | 4.2/2.5 | 300 | 300 | 125 |
| WQF-7 | 150～180 | ～60 | 15 | 3 | 1.1 | 2.2 | Φ7 | 8.9/7.0 | 4.2/2.5 | 350 | 350 | 150 |
| WQF-8 | 200～250 | ～70 | 22 | 4 | 1.5 | 3 | Φ8 | 9.9/8.0 | 4.7/3.0 | 400 | 400 | 150 |
| WQF-9 | 250～300 | ～90 | 30 | 4 | 1.5 | 3 | Φ9 | 10.9/9.0 | 4.7/3.0 | 400 | 400 | 150 |
| WQF-10 | 300～400 | ～110 | 30 | 4 | 1.5 | 3 | Φ10 | 11.9/10.0 | 4.7/3.0 | 450 | 450 | 150 |
| WQF-11 | 400～500 | ～150 | 45 | 5.5 | 2.2 | 3 | Φ11 | 12.9/11.0 | 4.7/3.0 | 450 | 450 | 200 |
| WQF-12 | 500～625 | ～200 | 45 | 5.5 | 2.2 | 4 | Φ12 | 13.9/12.0 | 5.7/4.0 | 450 | 450 | 200 |
| WQF-13 | 625～750 | ～240 | 55 | 5.5 | 2.2 | 4 | Φ13 | 14.9/13.0 | 5.7/4.0 | 500 | 500 | 200 |
| WQF-14 | 800～950 | ～280 | 55 | 5.5 | 2.2 | 4 | Φ14 | 15.9/14.0 | 5.7/4.0 | 500 | 500 | 200 |
| WQF-15 | 1000～1150 | ～300 | 55 | 5.5 | 2.2 | 4 | Φ15 | 16.9/15.0 | 5.7/4.0 | 600 | 600 | 200 |
| WQF-16 | 1250～1400 | ～300 | 55 | 5.5 | 2.2 | 4 | Φ16 | 17.9/16.0 | 5.7/4.0 | 700 | 700 | 200 |
| WQF-18 | 1500～1800 | ～480 | 75 | 7.5 | 3 | 4 | Φ18 | 19.9/18.0 | 5.7/4.0 | 700 | 700 | 250 |
Working Principle
The high-efficiency shallow air flotation enters the mixing reactor in the raw water, and the coagulant and flocculant are added to the pipeline mixing reactor to form separable flocs, which are released through the dissolved air release mechanism to release tiny bubbles (bubble diameter range 5～10um )mixing. These tiny bubbles adhere to the flocs in the sewage, forming air floats with a specific gravity less than water. The floating body rises on the water surface and condenses into floating oil (or scum), which is scraped by the oil (slag) scraper to the oil (slag) tank.
Model meaning
Technical Advantages
● The degree of purification is high, and the removal rate of suspended solids is above 98%.
● The equipment is light, compact, easy to transport and install, and low power consumption.
● The residence time is short, only 3-5 minutes, and the efficiency is high.
● The surface load is large, and the purification treatment capacity is large.
● Using the principle of "zero speed", the forced water distribution and water inlet and outlet are static. Since the disturbance to the flocs in the water is minimized and the scum is removed instantly, the stability is higher.
● Using the "shallow pond theory", the effective pond depth is only 730mm, and the floor space is small.
● The high-efficiency non-blocking release mechanism is adopted to improve the utilization efficiency of dissolved air water and at the same time ensure the stability of the air flotation equipment.
● The processing effect is stable, and the electromechanical instrument realizes integrated control.
Application Field
● Removal of algae and turbidity of river black and odorous water and landscape water.
● Domestic sewage pretreatment and sludge thickening.
● Papermaking white water pulp recycling and clean water reuse.
● Removal of chroma and impurities in printing and dyeing wastewater.
● Removal of various heavy metal ions in electroplating wastewater.
● Separation of refining wastewater and oil pollution.
● Removal of impurities in tannery wastewater.
● Desalination pretreatment.
