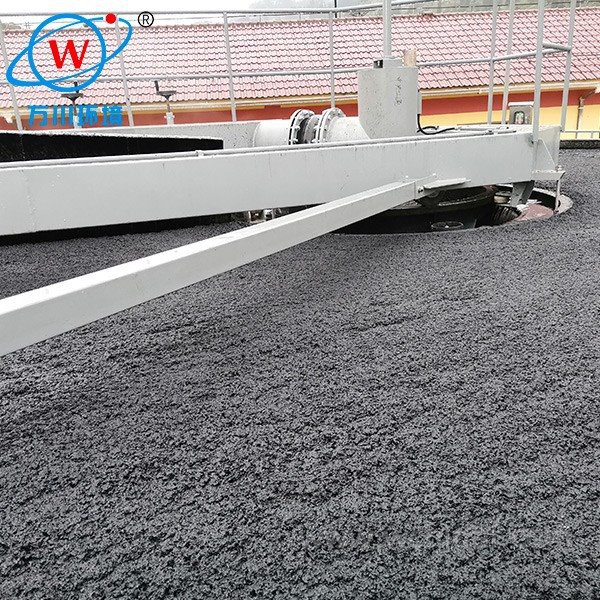

Wanchuan High-efficiency Dissolved Air Flotation is an efficient, horizontal, and dissolved air flotation clarifier. With patented technology, the device has high hydraulic and solid-liquid capacity, good clarification effect, and stable treatment effect.
| Modle | Capacity | Dissolved air volume | Power KW | Dimension | DN(Nozzle list) | |||||||
| m³/h | m³/h | Reflux pump | Aerator | Skimmer | Blender | Pool diameter(m) | D/D1 | H/H1 | iniet (A) | Outlet (B) | Sludge outlet (C) | |
| WQF-2 | 15～20 | ～7 | 2.2 | 1.5 | 0.75 | 1.5 | Φ2 | 3.4/2.0 | 4.2/2.5 | 100 | 100 | 100 |
| WQF-3 | 30～40 | ～13 | 5.5 | 1.5 | 0.75 | 1.5 | Φ3 | 4.8/3.0 | 4.2/2.5 | 150 | 150 | 100 |
| WQF-4 | 50～80 | ～15 | 7.5 | 1.5 | 0.75 | 1.5 | Φ4 | 5.9/4.0 | 4.2/2.5 | 200 | 200 | 100 |
| WQF-5 | 80～100 | ～30 | 11 | 2.2 | 1.1 | 2.2 | Φ5 | 6.9/5.0 | 4.2/2.5 | 300 | 300 | 125 |
| WQF-6 | 100～150 | ～40 | 11 | 2.2 | 1.1 | 2.2 | Φ6 | 7.9/6.0 | 4.2/2.5 | 300 | 300 | 125 |
| WQF-7 | 150～180 | ～60 | 15 | 3 | 1.1 | 2.2 | Φ7 | 8.9/7.0 | 4.2/2.5 | 350 | 350 | 150 |
| WQF-8 | 200～250 | ～70 | 22 | 4 | 1.5 | 3 | Φ8 | 9.9/8.0 | 4.7/3.0 | 400 | 400 | 150 |
| WQF-9 | 250～300 | ～90 | 30 | 4 | 1.5 | 3 | Φ9 | 10.9/9.0 | 4.7/3.0 | 400 | 400 | 150 |
| WQF-10 | 300～400 | ～110 | 30 | 4 | 1.5 | 3 | Φ10 | 11.9/10.0 | 4.7/3.0 | 450 | 450 | 150 |
| WQF-11 | 400～500 | ～150 | 45 | 5.5 | 2.2 | 3 | Φ11 | 12.9/11.0 | 4.7/3.0 | 450 | 450 | 200 |
| WQF-12 | 500～625 | ～200 | 45 | 5.5 | 2.2 | 4 | Φ12 | 13.9/12.0 | 5.7/4.0 | 450 | 450 | 200 |
| WQF-13 | 625～750 | ～240 | 55 | 5.5 | 2.2 | 4 | Φ13 | 14.9/13.0 | 5.7/4.0 | 500 | 500 | 200 |
| WQF-14 | 800～950 | ～280 | 55 | 5.5 | 2.2 | 4 | Φ14 | 15.9/14.0 | 5.7/4.0 | 500 | 500 | 200 |
| WQF-15 | 1000～1150 | ～300 | 55 | 5.5 | 2.2 | 4 | Φ15 | 16.9/15.0 | 5.7/4.0 | 600 | 600 | 200 |
| WQF-16 | 1250～1400 | ～300 | 55 | 5.5 | 2.2 | 4 | Φ16 | 17.9/16.0 | 5.7/4.0 | 700 | 700 | 200 |
| WQF-18 | 1500～1800 | ～480 | 75 | 7.5 | 3 | 4 | Φ18 | 19.9/18.0 | 5.7/4.0 | 700 | 700 | 250 |

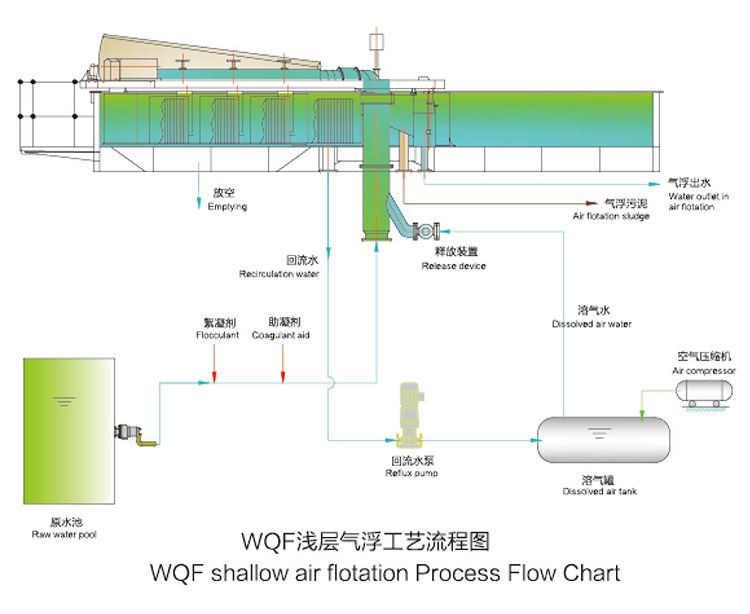

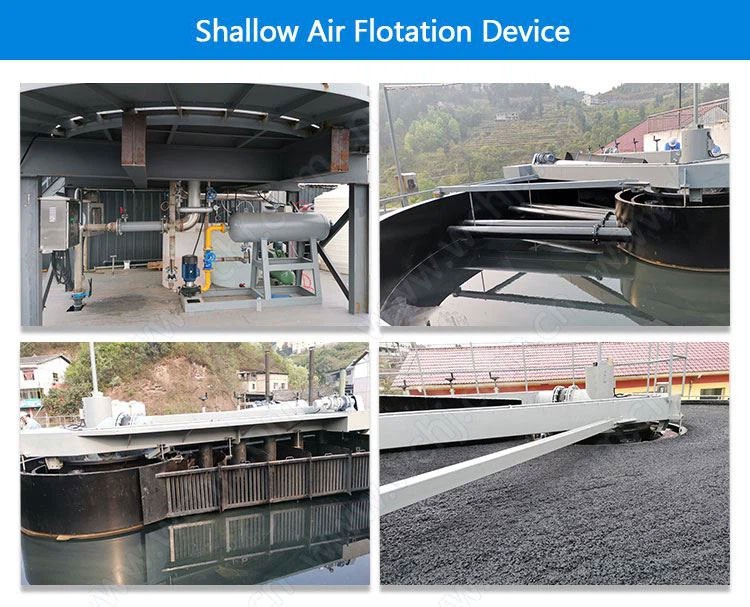

Structure And Working Process
The shallow air flotation device with compact structure and shallow pool. Including pool body, spiral water distribution mechanism, dissolved air release mechanism, rotating frame, water collection mechanism, slag skimmer mechanism, dissolved air system, return water pipeline, electric control cabinet and other components. The water inlet, the water outlet and the sludge discharge outlet are all in the rotating area of the equipment. The water distribution mechanism, water collection mechanism, and dissolved air release mechanism are all closely connected to the frame and rotate around the center of the pool. This device provides a complete set of equipment assembly and control system, through the combination of centralized control and decentralized control, so that the equipment can achieve a better operating state.
Main Advantages
The Shallow Circular Dissolved Air Flotation Daf System is very compact and efficient clarifier.
Compared with the traditional rectangular unit, the cost of capital is relatively low.
High energy efficiency: the clarification level is very high, and the pressure is much lower than the traditional centrifugal clarifier.
In the presence of bubbles and polymers, optimizing flocculation by extending the coagulation time to minimize polymer consumption.

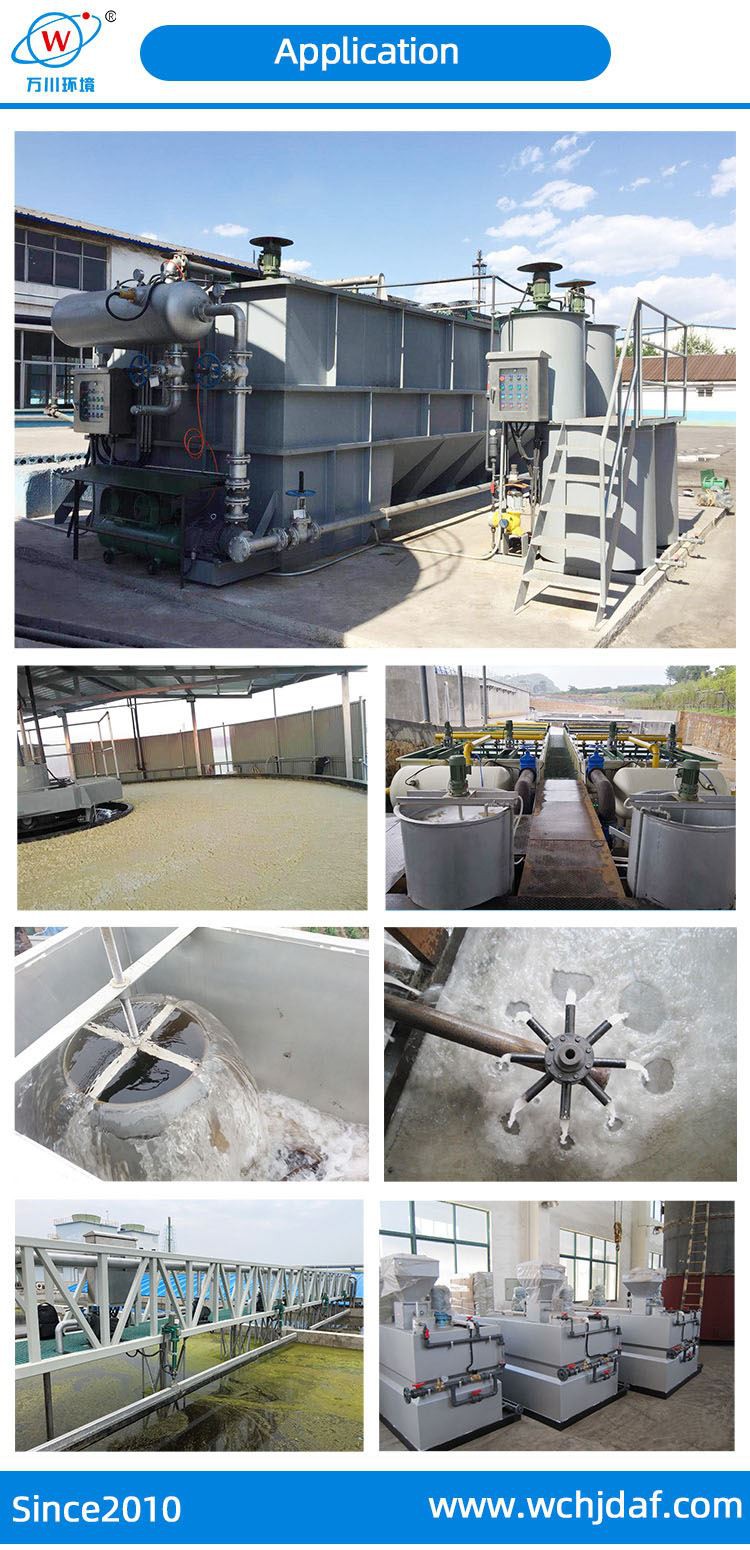

Main Application
White water clarification and fiber recycling in the paper industry
Clarification of deinking wastewater
Combination of clarification of food and industrial wastewater with physical and chemical treatment
Biological tertiary treatment.
