Introduction
The working principle of Vortex Dissolved Air Flotation is to use the high-speed rotation of the air diffuser at the bottom of the air conveying pipe to form a vacuum zone in the water. The air on the liquid surface is input into the water through the aerator to fill the vacuum, and microbubbles are generated and rise to the water surface in a spiral shape. The oxygen in the air also enters the water.

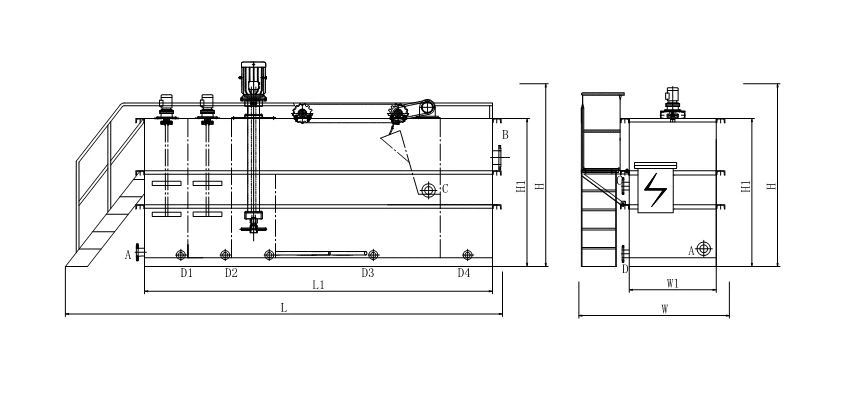

Technical parameter
| 型号 | 处理量 | 功率表Power | 规格尺寸(m) | 管口表DN | |||||||
| m³/h | 曝气机 | 刮渣机 | 搅拌机 | L/L1 | W/W1 | H/H1 | 进水口 | 出水口 | 排渣口 | 放空口 | |
| WA-5 | ～5 | 1.5 | 0.55 | 0.75 | 4.7/4.0 | 1.7/1.0 | 2.0/1.4 | 80 | 80 | 80 | 50 |
| WA-10 | ～10 | 2.2 | 0.55 | 0.75 | 5.7/5.0 | 1.9/1.2 | 2.0/1.4 | 100 | 100 | 100 | 80 |
| WA-15 | ～15 | 2.2 | 0.55 | 0.75 | 5.7/5.0 | 2.0/1.3 | 2.0/1.4 | 125 | 125 | 125 | 80 |
| WA-20 | ～20 | 2.2 | 0.55 | 0.75 | 5.9/5.2 | 2.0/1.3 | 2.0/1.4 | 150 | 150 | 150 | 80 |
| WA-30 | ～30 | 2.2 | 0.55 | 0.75 | 6.7/6.0 | 2.4/1.6 | 2.3/1.7 | 150 | 150 | 150 | 80 |
| WA-40 | ～40 | 2.2/4.4 | 0.55 | 1.1 | 7.8/7.0 | 2.4/1.6 | 2.4/1.8 | 200 | 200 | 150 | 80 |
| WA-50 | ～50 | 4.4 | 0.55 | 1.1 | 8.8/7.5 | 2.6/1.8 | 2.4/1.8 | 200 | 200 | 150 | 80 |
| WA-70 | ～70 | 4.4 | 0.55 | 1.1 | 9.9/9.0 | 3.2/2.4 | 2.4/1.8 | 200 | 200 | 150 | 80 |
| WA-100 | ～100 | 4.4 | 0.75 | 1.1 | 10.3/9.5 | 3.2/2.4 | 2.6/1.8 | 200 | 200 | 200 | 80 |
| WA-120 | ～120 | 6.6 | 0.75 | 1.5 | 10.8/10.0 | 3.2/2.4 | 2.6/1.8 | 200 | 200 | 200 | 80 |
| WA-150 | ～150 | 6.6 | 0.75 | 1.5 | 12.0/11.0 | 3.2/2.4 | 2.6/1.8 | 250 | 250 | 200 | 100 |
| WA-200 | ～200 | 8.8 | 0.75 | 2.2 | 14.5/13.5 | 3.4/2.6 | 2.6/1.8 | 250 | 250 | 250 | 100 |
Technical advantages
Low noise, no parts in the tank that need to be repaired.
No need for circulating pump, all parts can be purchased anywhere.
No need for air compressor, the overall performance of the equipment is good and the installation is simple
No need for dissolved air tank, saving 20%-40% of floor space
Low energy consumption and operating costs.
Particularly suitable for oily wastewater treatment
Working principle
The Vortex Concave Air Flotation Machine generates a vertical upward buoyancy due to the density imbalance between the air-water mixture and the liquid, bringing the solid suspended matter to the surface of the water. During the floating process, micro-bubbles will attach to the suspended matter, and the solid suspended matter will rely on these bubbles to support and maintain it on the water surface, and then be hung to the sludge area by the scraper.

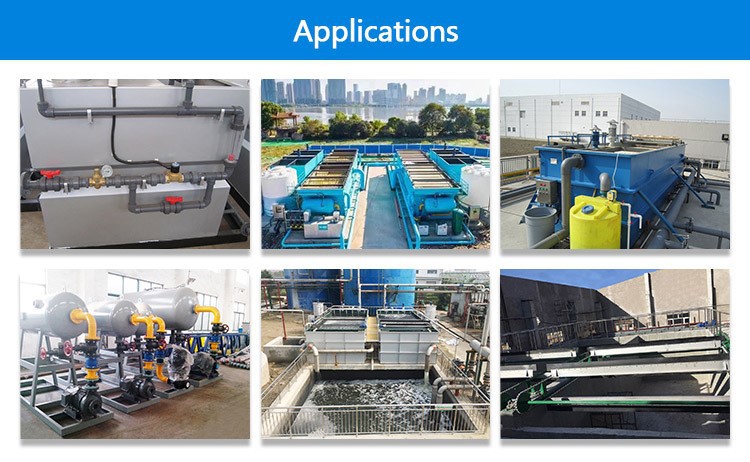

Application field
Oily wastewater from petrochemical processing industry
Oily wastewater from mining
Slaughter wastewater from the meat processing industry
Grease wastewater from dairy processing industry
White water treatment in pulp and paper industries
Oily wastewater from machining industry
Why Choos Us
Our company has focused on the R&D and production of environmental protection equipment for many years. We have many professional and technical personnel, modern workshops, sophisticated machinery and operating equipment, and advanced testing methods to ensure genuine quality.
When it comes to wastewater treatment, our PRC Vortex Dissolved Air Flotation is the obvious choice. With advanced technology, it can efficiently remove suspended solids, grease and other pollutants in sewage, and the purification effect is significant and stable.
