Product Usage
The Rotary Grille Decontamination Machine is widely used in sewage and rainwater pumping stations and sewage treatment plants, intercepting and retrieving coarse floating and suspended solids in sewage, protecting and reducing loads in the subsequent sequence, and is suitable for grid wells where the water depth does not exceed 2m.

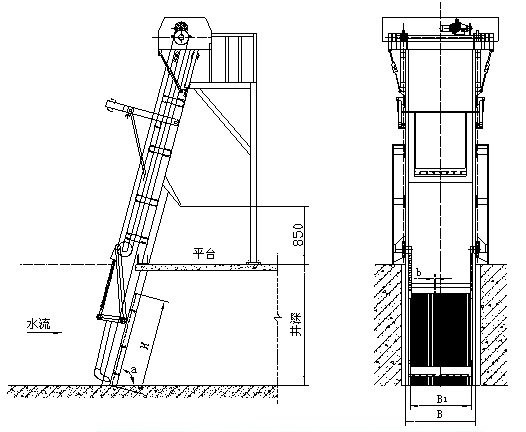

Working principle and structure
It is mainly composed of electric drive device, frame, rotary chain, tooth rake, grid bar and other components. The high-chain grille decontamination machine is equipped with a single tooth rake that rotates under the drive of the chain, that is, when the chain is driven by the top driving device to run clockwise, the tooth rake frame is constrained by the chain and the guide rail to move in a plane. A complete set of cyclic actions of slag removal, slag conveying, slag unloading and transposition are completed within one week of chain operation, and the slag is discharged to the conveyor through the relative movement of the top slag unloading device and the decontamination rake. When working, sewage flows through the grid gap of the grid, and the garbage intercepted on the grid surface is picked up by the rake teeth driven by the rotary chain and transported from the bottom to the top. The rubber cleaning plate is scraped off.
Features
1. Simple structure, stable and reliable operation.
2. There are no transmission parts underwater, with long service life and convenient maintenance.
3. Overload protection, safe operation.

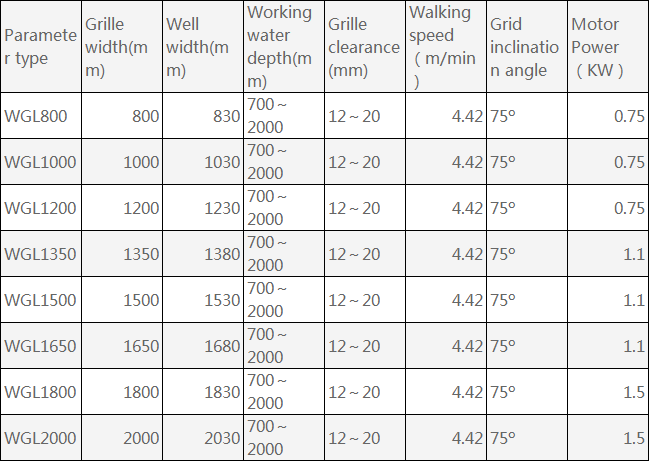

Model specification and main technical parameters
WGL high chain screen dirt remover is a kind of equipment used in sewage treatment and other fields. The motor drives the sprocket and chain to move. The dirt removal tooth rake fixed on the chain moves with the chain. When the tooth rake moves upward from the bottom of the screen, the dirt intercepted in front of the screen is scooped out of the water, and automatically flipped to the slag discharge port as the chain rotates, and the dirt is unloaded into the conveyor or slag bucket behind the screen to complete the dirt removal process. The liquid flows away through the gap of the screen.
