Introduction
Efficient sludge scrapers play a key role in this, Wanchuan Environmental Equipment professionally developed and produced Sludge scrapers help remove settled solids from the bottom of clarifiers or tanks, ensuring smooth operations and clean water output.
Working principle

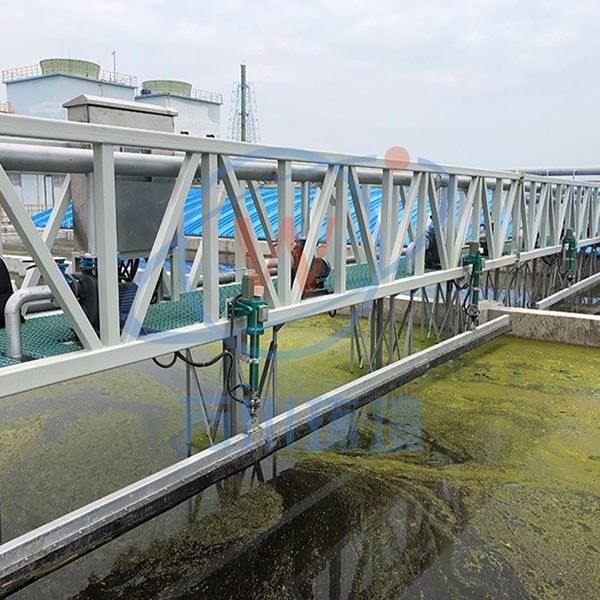

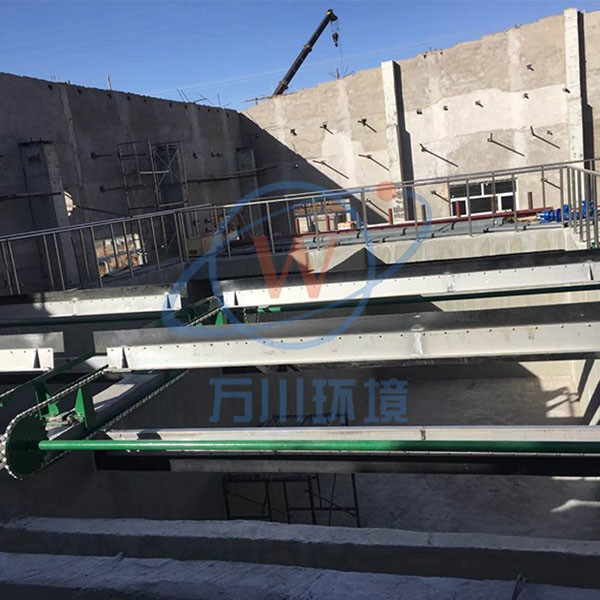

The peripheral drive scraper is composed of working bridge, scraper arm and scraper assembly, central support, driving mechanism, collector, electric control box and other main parts, as well as the outlet triangular weir plate, flow stabilizer, slag baffle, scum scraper board, etc.
The working bridge revolves around the centre support, which is fixed to the pool's centre pier, and is propelled by the driving mechanism situated on the periphery. The logarithmic spiral scraper, which rotates in response to a scraper arm suspended underneath the working bridge, gathers the sludge that settles at the bottom of the tank and transports it to the central mud collecting pit. The scum scraper and the peripheral slag baffle plate create a tapered area that collects the scum on the liquid surface. The scum scraper then scrapes the scum to the slag collecting bucket and empties the pool.
Application field
Wanchuan Environmental Equipment specializes in the development and production of Bridge Type Peripheral Drive Mud Scraper Clarifier, peripheral drive scraper, Semi bridge peripheral drive scraper, Rotating sludge scraper and other Rake Scraper products are mainly used for radial flow primary sedimentation, sludge discharge in secondary sedimentation tank, and sludge discharge in concentration tank. It is a new type of sludge scraper.
Model specifications and related technical parameters
