WTG Lift Rake Mud Scraper

Working principle

Sludge scraping rake descends, slag skimming rake descends - the scraper drives from the pool end (water outlet) to the mud and slag trough end, scraping and transporting the sludge and scum to the end point (water inlet end) - the mud scraping rake is lifted up , Lift the skimming rake - the scraper travels in reverse from the terminal to the starting end - stop or perform another cycle after reaching the starting end.

Application field

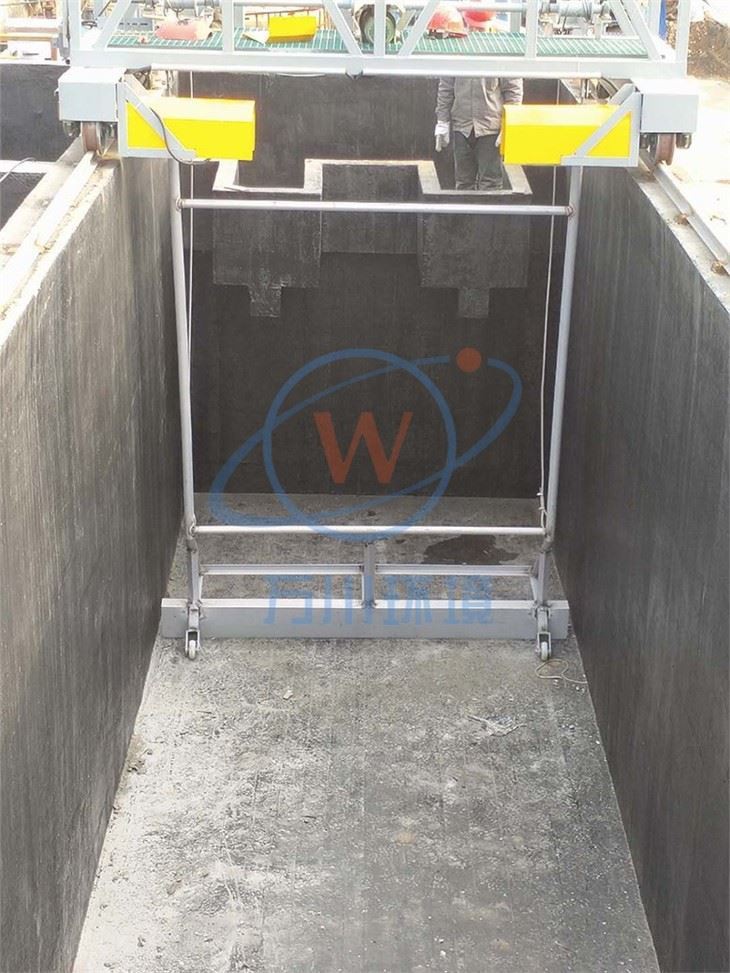

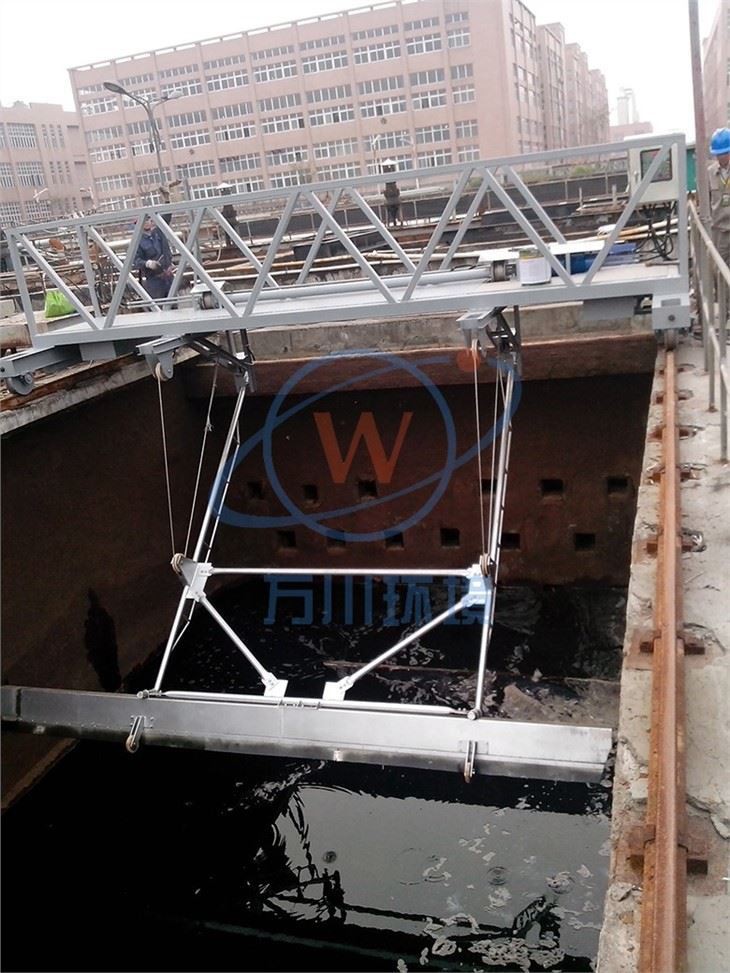

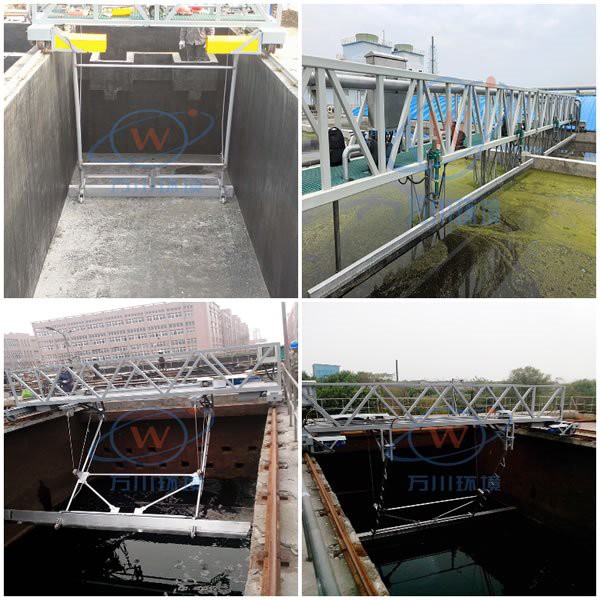

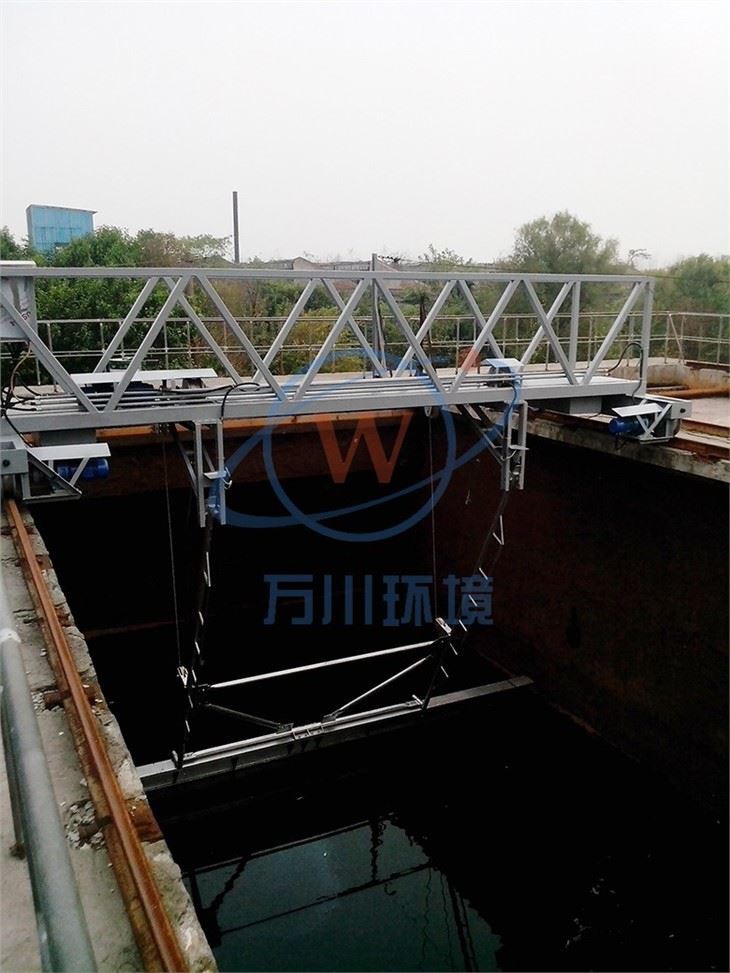

The scraper is used in the advective sedimentation tank of the sewage treatment plant, scraping the sludge settled at the bottom of the tank to the sludge collecting tank, and skimming the scum on the surface of the tank to the slag collecting tank.

Technical advantages

● Simple structure and light weight.

● Simple and convenient maintenance and low operating cost.

● The new type of transmission mechanism does not need a coupling, which is convenient for centering and compact in structure.

● According to the needs of users, the walking wheels can be rubber wheels, nylon wheels, and steel wheels.

● Unique switch components make the movement of raking and raking accurate and reliable.

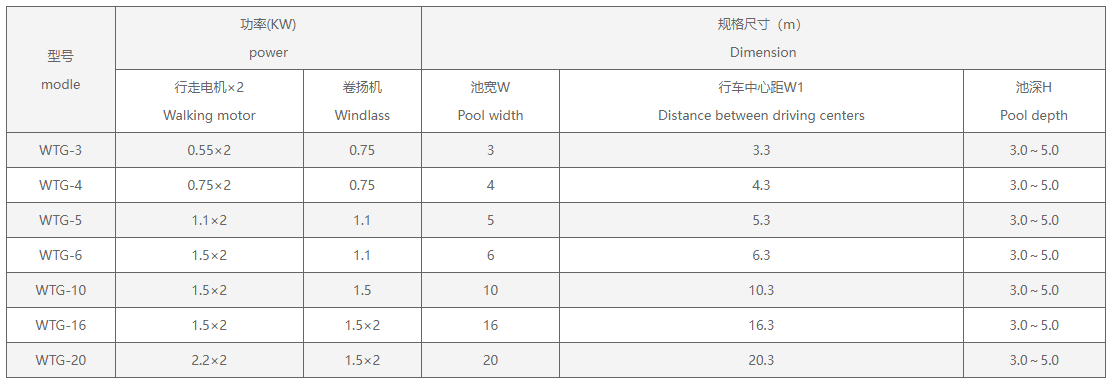

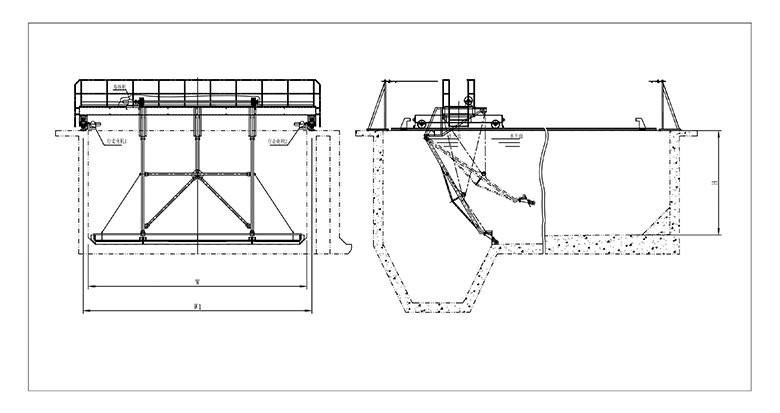

Model specifications and related technical parameters
