Working principle

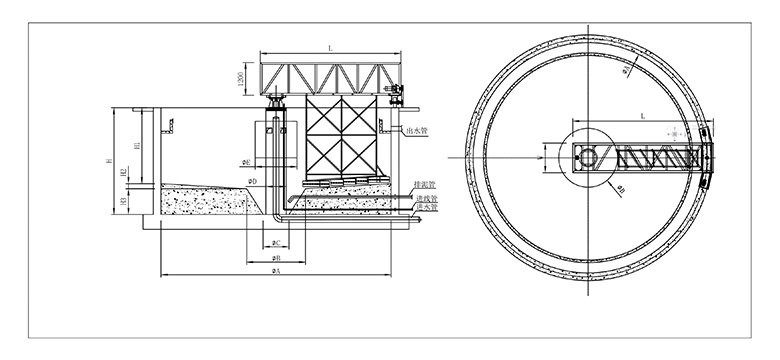

The peripheral drive scraper is composed of working bridge, scraper arm and scraper assembly, central support, driving mechanism, collector, electric control box and other main parts, as well as the outlet triangular weir plate, flow stabilizer, slag baffle, scum scraper board, etc.
The working bridge is driven by the drive mechanism installed on the periphery, and rotates around the center support installed on the center pier of the pool. The scraper arm suspended under the working bridge drives the logarithmic spiral scraper to rotate, and the sludge deposited at the bottom of the tank is collected by the scraper to the central mud collecting pit. The scum on the liquid surface is concentrated in the tapered area formed by the scum scraper and the peripheral slag baffle plate, and is scraped to the slag collecting bucket by the scum scraper and discharged out of the pool.
Application field
It is mainly used for radial flow primary sedimentation, sludge discharge in secondary sedimentation tank, and sludge discharge in concentration tank. It is a new type of sludge scraper.
Technical advantages
● The working bridge adopts truss structure, which is simple, beautiful and light.
● Simple and convenient maintenance and low operating cost.
● Various choices of transmission reducer: shaft-mounted type, simple and compact structure, convenient maintenance; cycloidal pinwheel reducer, low cost and high transmission efficiency.
● According to the user's needs, the material of the running wheel surface can be selected from engineering rubber wheels (standard configuration), steel wheels, nylon wheels, and polyurethane wheels.
● The high-efficiency logarithmic spiral scraper ensures the reliability of scraping and collecting sludge.
● The electrical components are outdoor type, safe and reliable, and can be controlled randomly and remotely.
● Equipment can be manufactured in user specific dimensions. Parts in contact with water can be made of stainless steel.

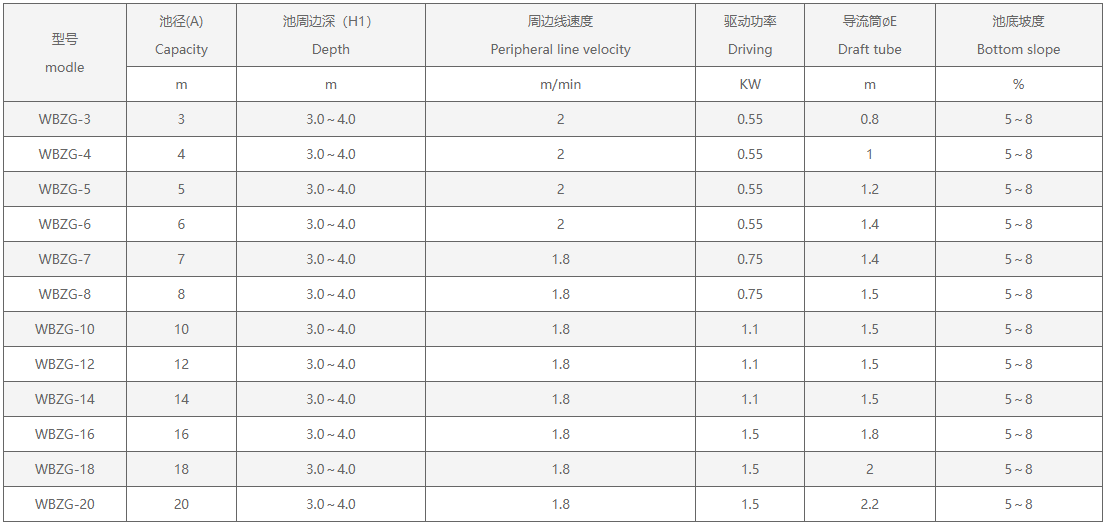

Model specifications and related technical parameters
