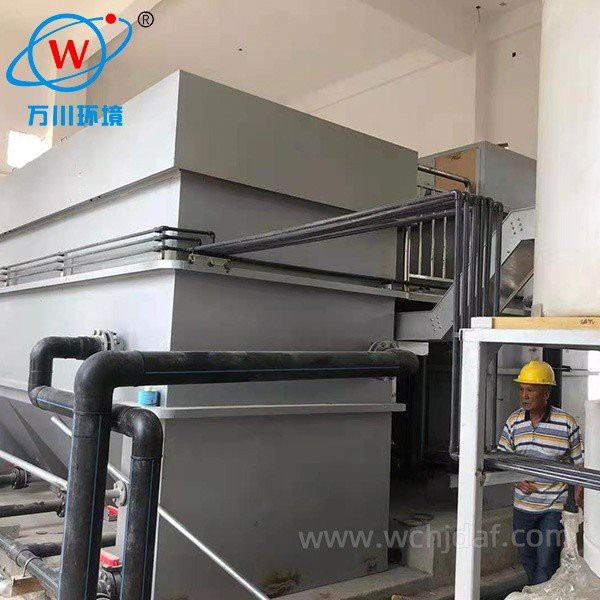

Introduction
Wanchuan Environmental adopts a new type of high-efficiency Air Flotation Clarifiers, which replaces traditional air-entrained equipment to dissolve air into the water, and installs a number of inclined pipe groups in the air flotation area, including a box body, a slag scraper, and a spiral discharge The machines together form a complete air flotation water purification device.
Technical Data
| Modle | Capacity | Dissolved air volume | Power KW | Dimension | DN (Nozzle list) | ||||||||
| m³/h | m³/h | Reflux pump | Aerator | Skimmer | Blender | L/L1 | W/W1 | H/H1 | iniet (A) | Outlet (B) | Sludge outlet (C) | Vent (D) | |
| WF-1 | ～1 | ～0.7 | 0.55 | 0.55 | 0.2 | 0.4 | 2.0/1.7 | 0.90/0.55 | 1.5/1.1 | 32 | 32 | 40 | 32 |
| WF-2 | ～2 | ～1 | 0.55 | 0.55 | 0.2 | 0.4 | 2.9/2.8 | 1.15/0.65 | 1.9/1.5 | 40 | 40 | 50 | 40 |
| WF-3 | ～3 | ～2 | 0.75 | 0.55 | 0.2 | 0.4 | 4.1/3.5 | 1.6/0.8 | 2.0/1.6 | 80 | 80 | 80 | 50 |
| WF-5 | ～5 | ～3 | 1.1 | 0.55 | 0.2 | 0.75 | 4.7/4.0 | 2.15/1.0 | 2.1/1.7 | 80 | 80 | 80 | 50 |
| WF-10 | ～10 | ～4 | 1.5/5.5 | 0.75 | 0.55 | 0.75 | 5.7/5.0 | 2.35/1.2 | 2.5/2.0 | 100 | 100 | 100 | 80 |
| WF-15 | ～15 | ～5 | 2.2/5.5 | 0.75 | 0.55 | 0.75 | 6.2/5.5 | 2.65/1.5 | 2.5/2.0 | 125 | 125 | 125 | 80 |
| WF-20 | ～20 | ～7 | 3.0/5.5 | 0.75 | 0.55 | 0.75 | 6.5/5.8 | 2.95/1.8 | 2.5/2.0 | 150 | 150 | 150 | 80 |
| WF-30 | ～30 | ～12 | 3.0/5.5 | 0.75 | 0.55 | 0.75 | 6.7/6.0 | 3.25/2.0 | 2.6/2.1 | 150 | 150 | 150 | 80 |
| WF-40 | ～40 | ～15 | 4.0/5.5 | 1.5 | 0.55 | 1.1 | 7.8/7.0 | 3.45/2.2 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-50 | ～50 | ～20 | 7.5 | 1.5 | 0.55 | 1.1 | 8.0/7.2 | 3.95/2.7 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-60 | ～60 | ～25 | 7.5 | 1.5 | 0.55 | 1.1 | 9.3/8.5 | 4.05/2.8 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-70 | ～70 | ～30 | 11 | 1.5 | 0.55 | 1.1 | 9.9/9.0 | 4.05/2.8 | 2.7/2.1 | 200 | 200 | 150 | 80 |
| WF-80 | ～80 | ～30 | 11 | 2.2 | 0.55 | 1.1 | 11.4/10.5 | 4.25/3.0 | 3.0/2.1 | 200 | 200 | 200 | 80 |
| WF-100 | ～100 | ～40 | 11 | 2.2 | 0.55 | 1.1 | 11.7/11.0 | 4.45/3.2 | 3.0/2.1 | 200 | 200 | 200 | 80 |
| WF-120 | ～120 | ～45 | 15 | 2.2 | 0.75 | 1.5 | 11.9/11.0 | 4.65/3.4 | 3.0/2.1 | 250 | 250 | 200 | 100 |
| WF-150 | ～150 | ～55 | 18.5 | 3 | 0.75 | 1.5 | 12.0/11.0 | 4.65/3.4 | 3.0/2.1 | 250 | 250 | 200 | 100 |
| WF-200 | ～200 | ～75 | 22 | 3 | 0.75 | 2.2 | 13.5/12.0 | 4.85/3.6 | 3.0/2.1 | 250 | 250 | 250 | 100 |
| WF-300 | ～300 | ～100 | 30 | 3 | 0.75 | 3 | 15.5/14.0 | 4.85/3.6 | 3.0/2.1 | 300 | 400 | 250 | 100 |

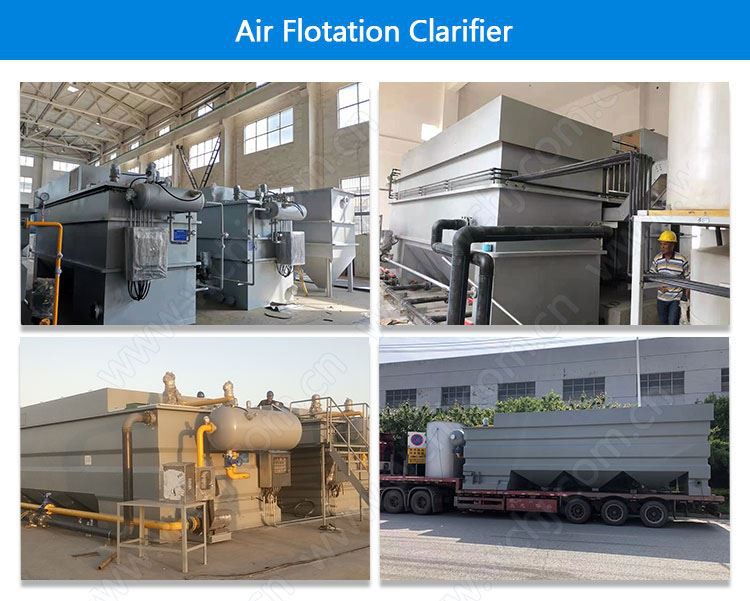

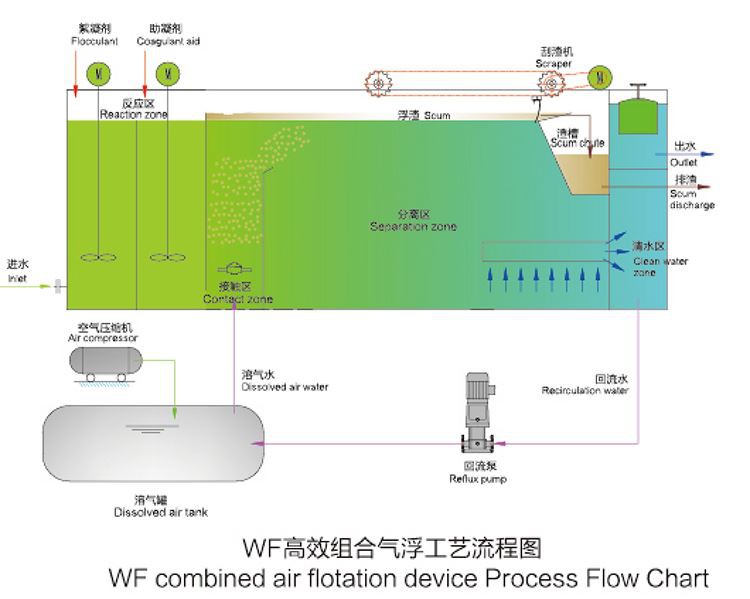

Structure And Working Process

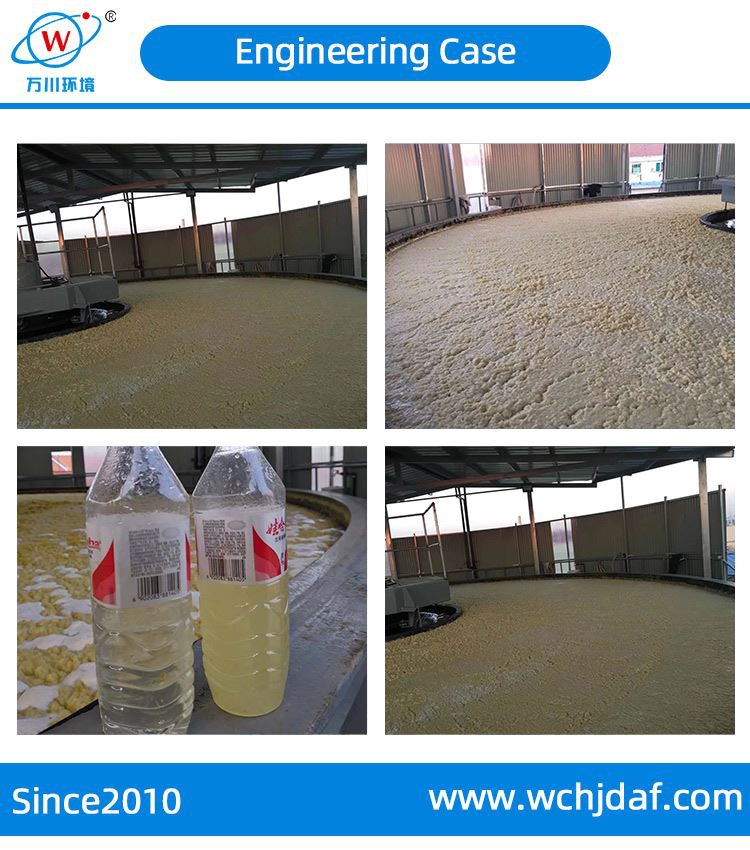

Dissolved air flotation is based on a physical/chemical process. In this process, air is injected into the water with chemical assistance to make particles/groups float to the surface. This floating sludge layer is then automatically and continuously removed by the scraper. The system will produce a treated wastewater with almost no TSS, fog and remove a large part of BOD.
