Introduction

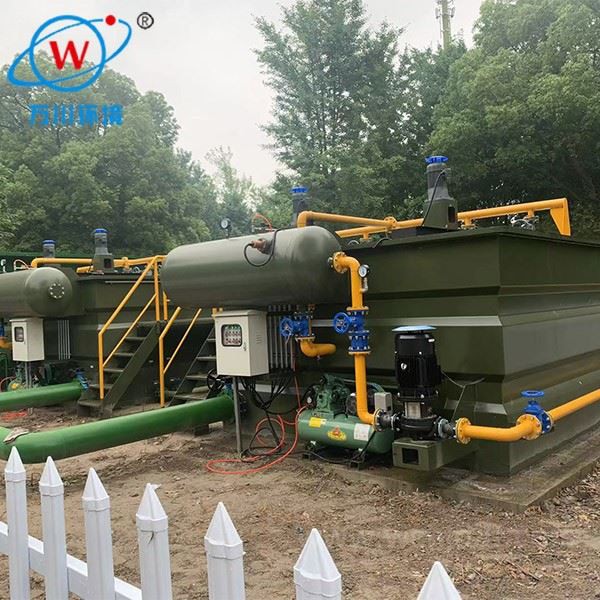

River Water Purification Shallow Dissolved Air Flotation Equipment is an efficient water treatment technology and is widely used in municipal standards improvement, seawater desalination and river water treatment projects. It mainly uses air flotation separation technology to efficiently separate suspended solids, grease and algae in the water, thereby purifying water quality.
Technical Data
| Modle | Capacity | Dissolved air volume | Power KW | Dimension | DN(Nozzle list) | |||||||
| m³/h | m³/h | Reflux pump | Aerator | Skimmer | Blender | Pool diameter (m) | D/D1 | H/H1 | iniet (A) | Outlet (B) | Sludge outlet (C) | |
| WQF-2 | 15～20 | ～7 | 2.2 | 1.5 | 0.75 | 1.5 | Φ2 | 3.4/2.0 | 4.2/2.5 | 100 | 100 | 100 |
| WQF-3 | 30～40 | ～13 | 5.5 | 1.5 | 0.75 | 1.5 | Φ3 | 4.8/3.0 | 4.2/2.5 | 150 | 150 | 100 |
| WQF-4 | 50～80 | ～15 | 7.5 | 1.5 | 0.75 | 1.5 | Φ4 | 5.9/4.0 | 4.2/2.5 | 200 | 200 | 100 |
| WQF-5 | 80～100 | ～30 | 11 | 2.2 | 1.1 | 2.2 | Φ5 | 6.9/5.0 | 4.2/2.5 | 300 | 300 | 125 |
| WQF-6 | 100～150 | ～40 | 11 | 2.2 | 1.1 | 2.2 | Φ6 | 7.9/6.0 | 4.2/2.5 | 300 | 300 | 125 |
| WQF-7 | 150～180 | ～60 | 15 | 3 | 1.1 | 2.2 | Φ7 | 8.9/7.0 | 4.2/2.5 | 350 | 350 | 150 |
| WQF-8 | 200～250 | ～70 | 22 | 4 | 1.5 | 3 | Φ8 | 9.9/8.0 | 4.7/3.0 | 400 | 400 | 150 |
| WQF-9 | 250～300 | ～90 | 30 | 4 | 1.5 | 3 | Φ9 | 10.9/9.0 | 4.7/3.0 | 400 | 400 | 150 |
| WQF-10 | 300～400 | ～110 | 30 | 4 | 1.5 | 3 | Φ10 | 11.9/10.0 | 4.7/3.0 | 450 | 450 | 150 |
| WQF-11 | 400～500 | ～150 | 45 | 5.5 | 2.2 | 3 | Φ11 | 12.9/11.0 | 4.7/3.0 | 450 | 450 | 200 |
| WQF-12 | 500～625 | ～200 | 45 | 5.5 | 2.2 | 4 | Φ12 | 13.9/12.0 | 5.7/4.0 | 450 | 450 | 200 |
| WQF-13 | 625～750 | ～240 | 55 | 5.5 | 2.2 | 4 | Φ13 | 14.9/13.0 | 5.7/4.0 | 500 | 500 | 200 |
| WQF-14 | 800～950 | ～280 | 55 | 5.5 | 2.2 | 4 | Φ14 | 15.9/14.0 | 5.7/4.0 | 500 | 500 | 200 |
| WQF-15 | 1000～1150 | ～300 | 55 | 5.5 | 2.2 | 4 | Φ15 | 16.9/15.0 | 5.7/4.0 | 600 | 600 | 200 |
| WQF-16 | 1250～1400 | ～300 | 55 | 5.5 | 2.2 | 4 | Φ16 | 17.9/16.0 | 5.7/4.0 | 700 | 700 | 200 |
| WQF-18 | 1500～1800 | ～480 | 75 | 7.5 | 3 | 4 | Φ18 | 19.9/18.0 | 5.7/4.0 | 700 | 700 | 250 |
Working Principle

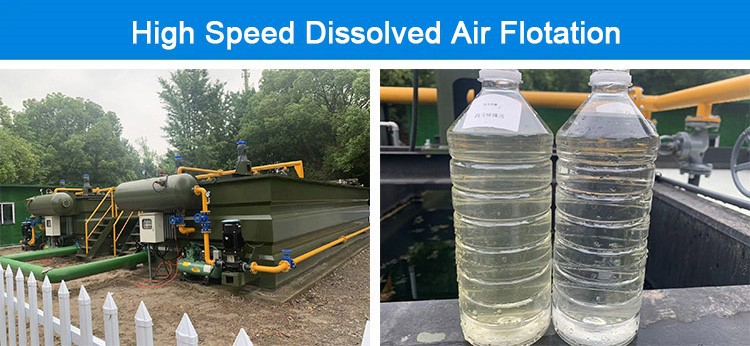

The working principle of the high-speed air flotation machine is that under a certain working pressure, air and water are mixed so that the gas can be dissolved into the water to the maximum extent and form a supersaturated state. Then, River purification high speed air flotation is released through reduced pressure, generating a large number of fine bubbles. These bubbles are in full contact with the pollutants in the water. The pollutants adhere to the bubbles and float to the water surface with the bubbles to form scum, which is then removed by the slag scraper device to achieve water purification.
Product Advantages
This technology has the following significant advantages:
1. It occupies a small area and saves space.
2. Large processing capacity and strong adaptability.
3. High degree of integration and easy operation.
4. The effluent quality is high, with suspended solids (SS) less than 10mg/L and total phosphorus less than 0.1mg/L.
Application Field
Application fields of high-speed air flotation for river purification
Municipal water plant bid increase
Black and smelly water treatment
Industrial terminal water phosphorus removal
Desalination increment.
